VLU200944 slewing Bearing, VLU200944 Slewing ring supplier, JB/T 10471-2004 standard

VLU200944  Bearing,VLU200944  Slewing ring, VLU200944  slewing bearing Specifications

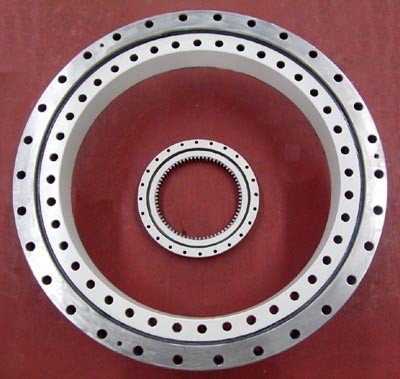

Type : VLU200944  Four point contact ball slewing bearing without gear teeth ,  Dimension: 1048x834x56 mm
 1.High load-carrying capability
2.Ability to accept the combined loads;axial ,radial and tilting moments
3.Flexibility with product design.
4.42CrMo/50Mn material be used to make slewing ring bearing

VLU200944 Bearing, VLU200944   Slewing ring, VLU200944  slewing bearing  technology data as follow:
Manufacture standard:JB/T 10471-2004 rolling bearing  slewing bearing
Dimension: 1048X834X56 mm/Metic
ID(inner diameter)/Bore: 1048 mm
OD(outer diameter):834 mm
Width/Height/thickness:56 mm
Axial Ca: 23 KN
Axial Cor:670 KN
Radial Ca:151 KN
Radial Cor:250 KN

Four point contact bearings VLU200944:
– these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

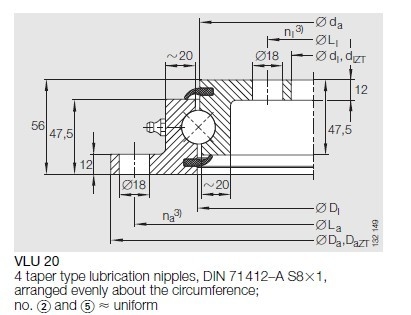

   VLU20: Four point contact bearing, light series 20, without gear teeth, selectable internal clearance,
      sealed, lubrication nipple on circumference of outer ring




VLU200944    Bearing, VLU200944   Slewing ring, VLU200944 slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly  export high quantities VLU200944   Slewing Bearing and relative products, we have huge stocks for VLU200944   slewing ring  and relative items, we supply high quality  VLU200944   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in  VLU200944  Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
