VSA201094N slewing Bearing, VSA201094N Slewing ring supplier and price

VSA201094N  Bearing, VSA201094N   Slewing ring, VSA201094N  slewing bearing  technology data as follow:

Manufacture standard:JB/T 10471-2004 rolling bearing  slewing bearing

Dimension:1198.1x1022x56 mm mm/Metic

ID(inner diameter)/Bore: 1198.1 mm

OD(outer diameter):1022mm

Width/Height/thickness:56 mm

Axial Ca: 244 KN

Axial Cor:1490 KN

Radial Ca:160 KN

Radial Cor:660 KN

VSA201094N  Slewing bearing with external gear teeth parameter:

do=1184 mm

m=8

Z=148

VSA201094N   Bearing,VSA201094N  Slewing ring, VSA201094N  slewing bearing Specifications:

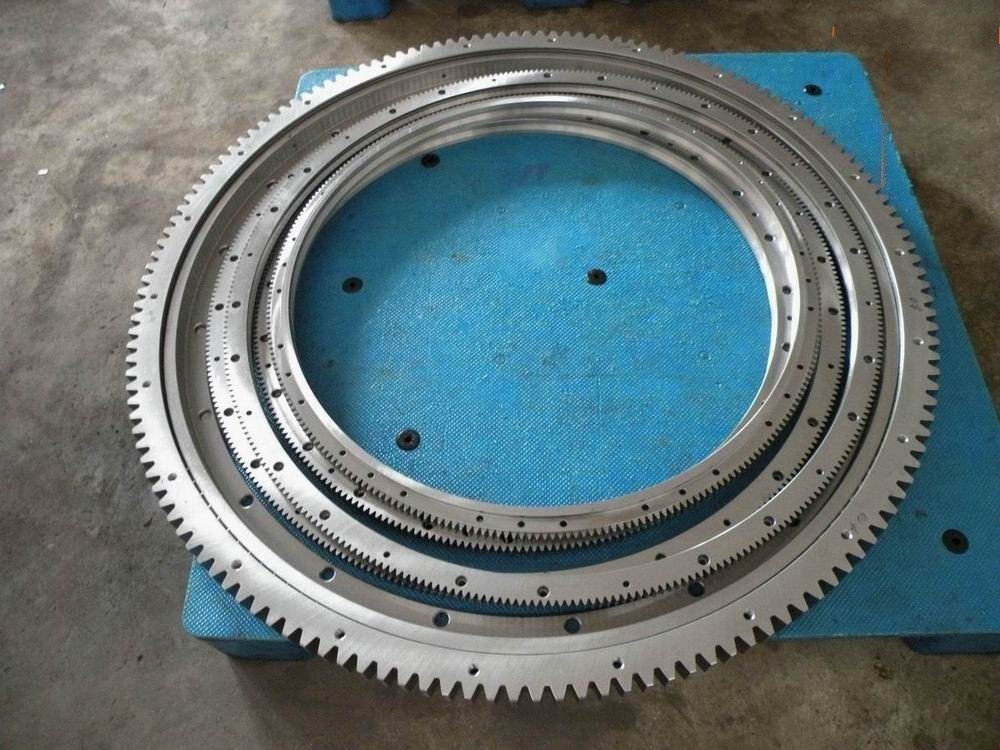

Type : VSA201094N  Four point contact ball slewing bearing with external gear teeth ,  Dimension: 1198.1x1022x56mm

 1.High load-carrying capability

2.Ability to accept the combined loads;axial ,radial and tilting moments

3.Flexibility with product design.

4.42CrMo/50Mn material be used to make slewing ring bearing

Four point contact bearings VSA201094N  description:

 these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
 they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

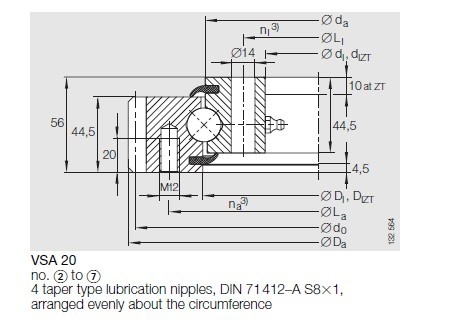

VSA20: Four point contact bearing, standard series 20, external gear teeth, selectable internal

        clearance, sealed, lubrication nipple on circumference of ring without teeth

VSA20 four point contact ball bearing type series:

VSA201094N    Bearing, VSA201094N  Slewing ring, VSA201094N  slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantities VSA201094N   Slewing Bearing and relative products, we have huge stocks for VSA201094N   slewing ring  and relative items, we supply high quality  VSA201094N    four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in  VSA201094N   Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
