VSU200944 slewing ring , VSU200944 slewing bearing, VSU200944 bearing manufacture

VSU200944  Bearing,  VSU200944   Slewing ring,  VSU200944  slewing bearing  technology data as follow:

Manufacture standard:JB/T 10471-2004 rolling bearing  slewing bearing

Dimension:1016x872x56 mm/Metic

ID(inner diameter)/Bore: 1016 mm

OD(outer diameter):872 mm

Width/Height/thickness:56 mm

Axial Ca: 231 KN

Axial Cor:1280 KN

Radial Ca:151 KN

Radial Cor:570 KN

  VSU200944   Bearing, VSU200944 Slewing ring,  VSU200944  slewing bearing Specifications:

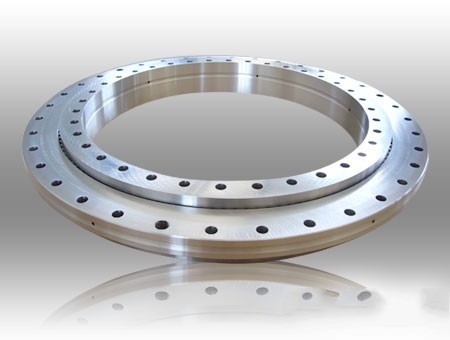

Type : VSU200944  Four point contact ball slewing bearing without gear teeth ,  Dimension:1016x872x56 mm

 1.High load-carrying capability

2.Ability to accept the combined loads;axial ,radial and tilting moments

3.Flexibility with product design.

4.42CrMo/50Mn material be used to make slewing ring bearing

Four point contact bearings  VSU200944   description:

 these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
 they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

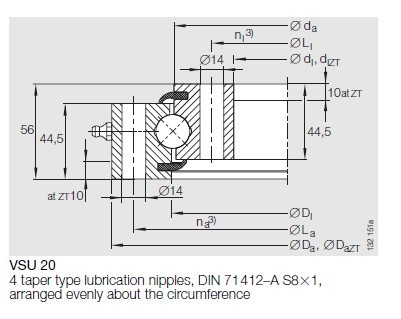

VSU20: Four point contact bearing, standard series 20, without gear teeth, selectable internal

        clearance,sealed, lubrication nipple on circumference of outer ring

Four point contact bearing  standard series20 without gear teeth, Series VSU:

 VSU200944   Bearing, VSU200944 Slewing ring,  VSU200944 slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantities  VSU200944   Slewing Bearing and relative products, we have huge stocks for  VSU200944   slewing ring  and relative items, we supply high quality  VSU200944    four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in   VSU200944  Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
