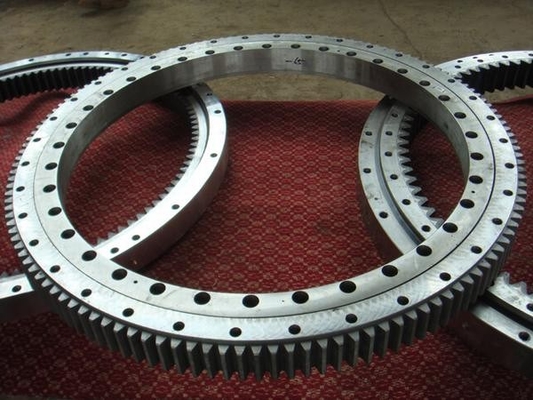

VSA250755N slewing ring , VSA250755N slewing bearing with external gear

VSA250755N  Bearing,  VSA250755N, VSA250755N  slewing bearing with external gear  technology data as follow:

Manufacture standard:JB/T 10471-2004 rolling bearing  slewing bearing
Dimension:898x655x80 mm/Metic
ID(inner diameter)/Bore: 898 mm
OD(outer diameter):655 mm
Width/Height/thickness:80 mm
Axial Ca: 460 KN
Axial Cor:2250 KN
Radial Ca:300 KN
Radial Cor:1010 KN
 Gear parameter:
do=882
m=9
z=98

  VSA250755N   Bearing,VSA250755N Slewing ring,  VSA250755N  slewing bearing Specifications:
Type : VSA250755N Four point contact ball slewing bearing with external gear teeth ,  Dimension:898x655x80 mm
 1.High load-carrying capability
2.Ability to accept the combined loads;axial ,radial and tilting moments
3.Flexibility with product design.
4.42CrMo/50Mn material be used to make slewing ring bearing


Four point contact bearings  VSA250755N  description:
 these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
 they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

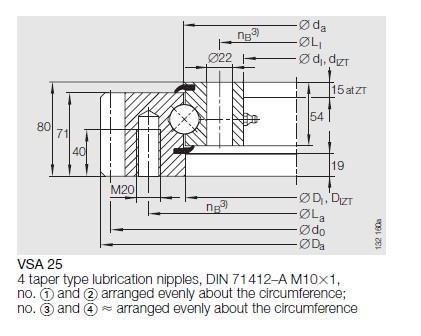

VSA25: As VSA 20 but with rolling element diameter 25 mm, internal clearance matched to series
Four point contact bearing standard series 25 external gear teeth series VSA:






 VSA250755N   Bearing, VSA250755N  Slewing ring,  VSA250755N slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly  export high quantities  VSA250755N   Slewing Bearing and relative products, we have huge stocks for VSA250755N   slewing ring  and relative items, we supply high quality  VSA250755N    four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in   VSA250755N  Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
