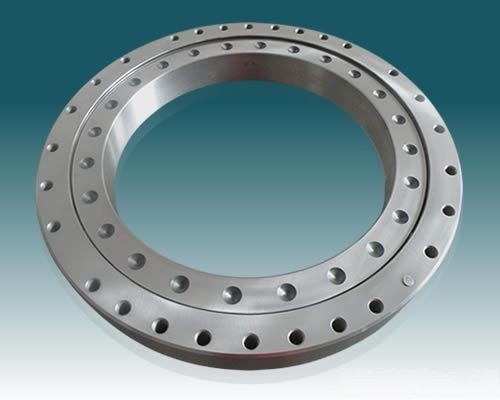

VSU250755 slewing bearing, VSU250755 4-point contact ball slewing bearing,no gear

VSU250755 Bearing,     VSU250755  slewing bearing no gear  technology data as follow:

Manufacture standard:JB/T 10471-2004 rolling bearing  slewing bearing
Dimension:855x655x63 mm/Metic
ID(inner diameter)/Bore: 855 mm
OD(outer diameter):655 mm
Width/Height/thickness:63 mm
Axial Ca: 460 KN
Axial Cor:2250 KN
Radial Ca:300 KN
Radial Cor:1010 KN

 VSU250755   Bearing,VSU250755Slewing ring,VSU250755  slewing bearing Specifications:
Type : VSU250755  Four point contact ball slewing bearing no gear teeth ,  Dimension:855x655x63 mm
 1.High load-carrying capability
2.Ability to accept the combined loads;axial ,radial and tilting moments
3.Flexibility with product design.
4.42CrMo/50Mn material be used to make slewing ring bearing


Four point contact ball slewing bearings  VSU250755  description:
 these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
 they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery
VSU25: As VSU 20 but with rolling element diameter 25 mm, internal clearance matched to series
Four point contact bearing standard series  series 25 without gear teeth series VSU:






VSU250755    Bearing, VSU250755   Slewing ring,  VSU250755  slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly  export high quantities  VSU250755    Slewing Bearing and relative products, we have huge stocks for VSU250755   slewing ring  and relative items, we supply high quality VSU250755    four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in   VSU250755   Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
