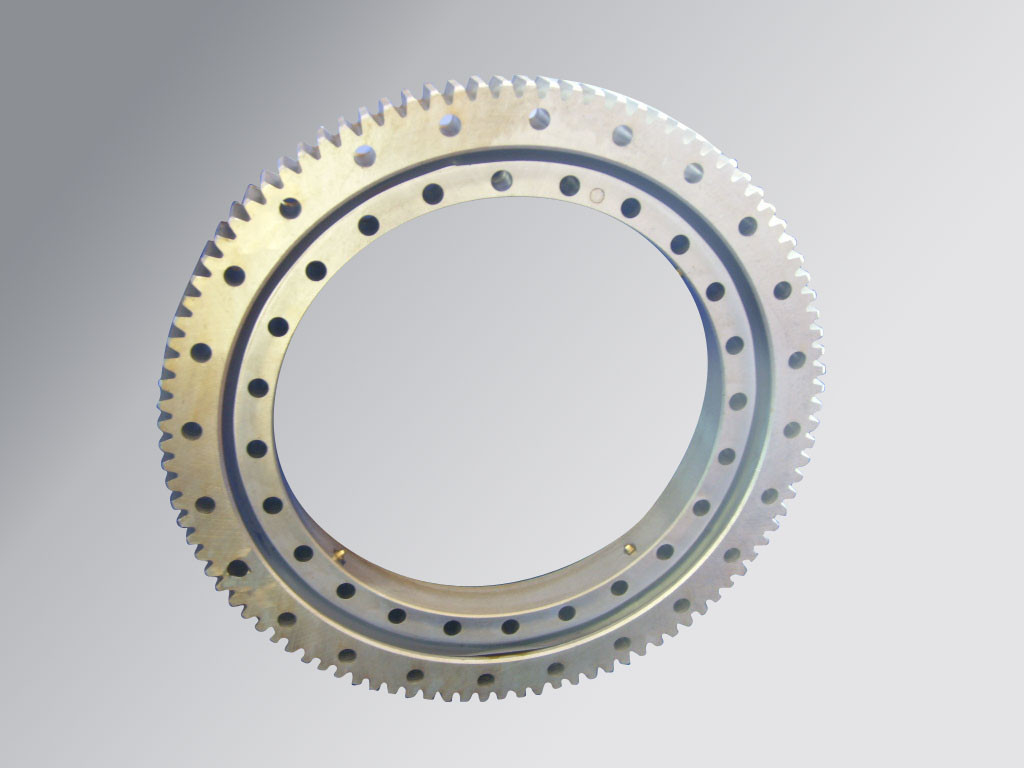

VA140188V slewing ring, VA140188V slewing bearing with external gear,259.36x135x35 mm

Large Image : VA140188V slewing ring, VA140188V slewing bearing with external gear,259.36x135x35 mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality certificate
Model Number:	VA140188V

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	standard export package
Delivery Time:	in stock ,if ex-stock,It will need 20-30 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	Double Seal Rubber
Number Of Row:	Single Row

VA140188V Bearing, VA140188V slewing bearing with external gear technology data as follow:

Description	VA140188V slewing bearing
Manufactured standard	JB/T 10471-2004 rolling bearing slewing bearing
dimension	259.36x135x35 mm
Outer diameter(OD)	259.36 mm
Inner diameter(ID)	135 mm
Width/Height/(H)	35 mm
Axial Ca	118 KN
Axial Cor	410 KN
Radial Ca	77 KN
Radial Cor	185 KN
Geat teeth do	248 mm
Gear teeth m	4
Gear teeth number	62

VA140188V Bearing, VA140188VSlewing ring, VA140188V slewing bearing Specifications:

Type : VA140188V Four point contact ball slewing bearing with external gear teeth , Dimension:259.36x135x35 mm

1.High load-carrying capability

2.Ability to accept the combined loads;axial ,radial and tilting moments

3.Flexibility with product design.

4.42CrMo/50Mn material be used to make slewing ring bearing

Four point contact ball slewing bearings VA140188V description:

these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

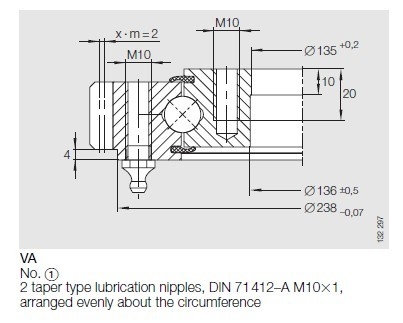

VA: Four point contact bearing, external teeth, sealed, selectable internal clearance, lubrication nipple

on circumference of untoothed ring

Four point contact bearings external gear teeth series VA:

VA140188V slewing ring, VA140188V slewing bearing with external gear,259.36x135x35 mm

Designation	Weight (kgs)	Dimension (mm)			Gear teeth			Basic load ratings (KN)
Designation	Weight (kgs)	Da	di	H	do	m	z	Axial Ca	Axial Coa	Radial Cr	Radial Cor
VA140188V	7.5	259.36	135	35	248	4	62	118	410	77	185
VA160235N	13	318.6	171	40	312	4	78	153	345	101	156
VA160302N	14	384	238	32	376	4	94	168	445	110	200
VA250309N	29.5	408.4	235	60	400	5	80	325	650	215	295

VA140188V Bearing, VA140188V Slewing ring, VA140188V slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly export high quantities VA140188V Slewing Bearing and relative products, we have huge stocks for VA140188V slewing ring and relative items, we supply high quality VA140188V four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in VA140188V Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
