VU250380 slewing bearing, VU250380 four point contact ball slewing ring no gear

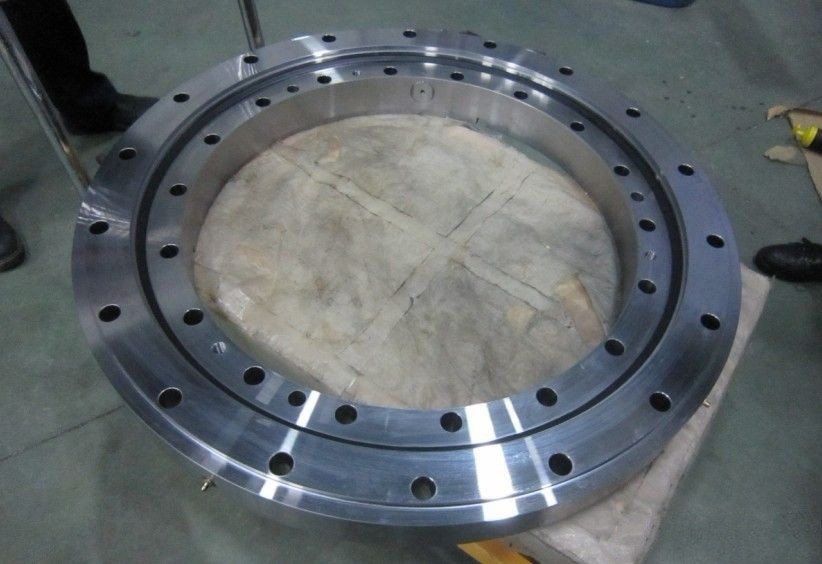

Large Image : VU250380 slewing bearing, VU250380 four point contact ball slewing ring no gear

Product Details:

Place of Origin:	China LuoYang
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality certificate
Model Number:	VU250380

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	standard export package
Delivery Time:	in stock ,if ex-stock,It will need 20-30 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	Doule Seal Rubber
Number Of Row:	Single Row

VU250380 Bearing, VU250380 slewing bearing with no gear technology data as follow:

Description	VU250380 four point contac ball slewing bearing
Manufactured standard	JB/T 10471-2004 rolling bearing slewing bearing
dimension	485x275x55 mm
Outer diameter(OD)	485 mm
Inner diameter(ID)	275 mm
Width/Height/(H)	55 mm
Axial Ca	350 KN
Axial Cor	800 KN
Radial Ca	230 KN
Radial Cor	360 KN

VU250380 Bearing, VU250380 Slewing ring, VU250380 slewing bearing Specifications:

Type : VU250380 Four point contact ball slewing bearing with no gear teeth , Dimension:485x275x55 mm

1.High load-carrying capability

2.Ability to accept the combined loads;axial ,radial and tilting moments

3.Flexibility with product design.

4.42CrMo/50Mn material be used to make slewing ring bearing

Four point contact ball slewing bearings VU250380 description:

these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

VU: Four point contact bearing, without teeth, sealed, selectable internal clearance, lubrication nipple

on outer ring circumference

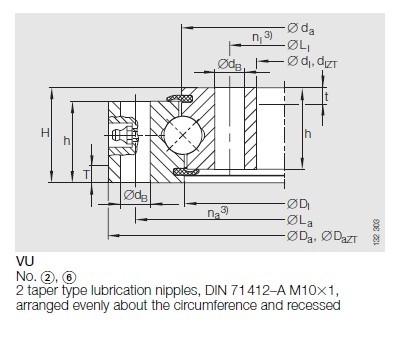

Four point contact bearings without gear teeth series VU:

VU250380 slewing bearing, VU250380 four point contact ball slewing ring no gear

Designation	Weight (kgs)	Dimension (mm)			Basic load ratings (KN)
Designation	Weight (kgs)	Da	di	H	Axial Ca	Axial Coa	Radial Cr	Radial Cor
VU 14 0179	7	234	124.5	35	115	255	75	114
VU 20 0220	16	302	138	46	201	435	132	197
VU 13 0225	5.4	290	200	24	49	87	46	39.5
VU 20 0260	15	329	191	46	217	520	143	233
VU 14 0325	12	380	270	35	146	460	95	208
VU 25 0380	44	485	275	55	350	800	230	360
VU 20 0405	25	474	336	46	260	810	169	360
VU 25 0433	41	522	344	55	370	910	243	410
VU 30 0574	82	680	468	68	495	1540	325	690
VU 36 0680	120	795	565	79	640	2260	415	1020

VU250380 Bearing, VU250380 Slewing ring, VU250380 slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly export high quantities VU250380 Slewing Bearing and relative products, we have huge stocks for VU250380 slewing ring and relative items, we supply high quality VU250380 four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in VU250380 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
