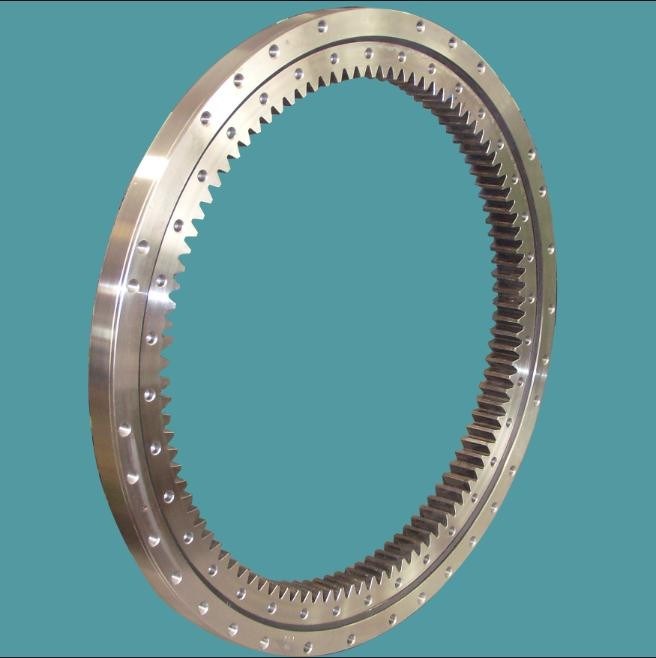

VSI250855N slewing ring, VSI250855N 4-point contact ball slewing bearing internal gear

VSI250855N  Bearing,     VSI250855N  slewing bearing with internal gear  technology data as follow:

Manufacture standard:JB/T 10471-2004 rolling bearing  slewing bearing
Dimension:955x710x80 mm/Metic
ID(inner diameter)/Bore: 955 mm
OD(outer diameter):710 mm
Width/Height/thickness:80 mm
Axial Ca: 485 KN
Axial Cor:2550 KN
Radial Ca:315 KN
Radial Cor:1150 KN
 Gear parameter:
do=730
m=10
z=73

 VSI250855N   Bearing,VSI250855NSlewing ring,VSI250855N slewing bearing Specifications:
Type : VSI250855N Four point contact ball slewing bearing with internal gear teeth ,  Dimension:955x710x80 mm
 1.High load-carrying capability
2.Ability to accept the combined loads;axial ,radial and tilting moments
3.Flexibility with product design.
4.42CrMo/50Mn material be used to make slewing ring bearing


Four point contact ball slewing bearings  VSI250855N  description:
 these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
 they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

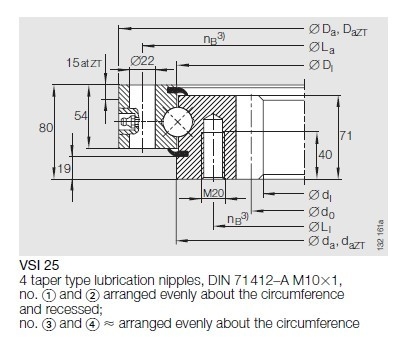

VSI25: As VSI 20 but with rolling element diameter 25 mm, internal clearance matched to series

Four point contact bearing standard series  25 internal gear teeth series VSI:






VSI250855N   Bearing, VSI250855N  Slewing ring,  VSI250855N slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
