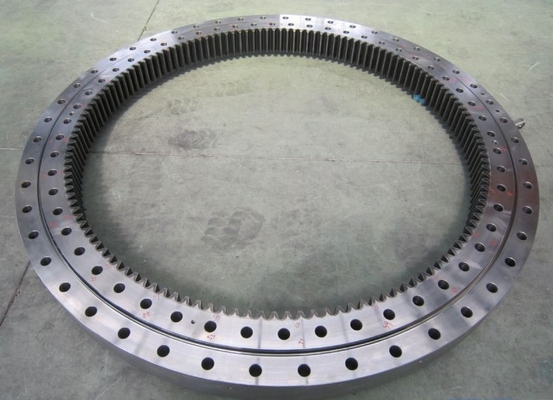

HT10-54N1Z slewing bearing with internal gear,HT10-54N1Z slewing ring,60x48.16x3.5 inch
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
The bearing HT10-54N1Z bearing,HT10-54N1Z slewing bearing,HT10-54N1Z slewing ring,HT10-54N1Z turntable bearing description as follows:
• Bearing type: HT10-54N1Z bearing,HT10-54N1Z slewing bearing,
• HT10-54N1Z slewing ring,HT10-54N1Z turntable bearing
• Structure:four point contact ball slewing bearing with internal gear
• Brand Name: JHB or OEM Required
• Bore Size: 48.16 inch size/1223.264 mm metric size
• Outside Diameter:60 inch size/1524 mm metric size
• Height:3.5 inch size/88.9mm metric size
• Gear Options: with internal teeth/gear
• Seals Type: yes
• Lubrication:grease
• Bearing mark: Brand+HT10-54N1Z Or your requirement
• Place of Origin: LuoYang, China (Mainland)
• Delivery Time: 20-30 days
• Material: 50Mn,42CrMo
• The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case
• Payment: T/T or L/C
HT10-54N1Z slewing bearing Specifications
1. High precision: P5,P6,P0
2. Low noise
3. Long serive life
4. short delivery time
5. OEM service provided
6. Processing with supplied drawings

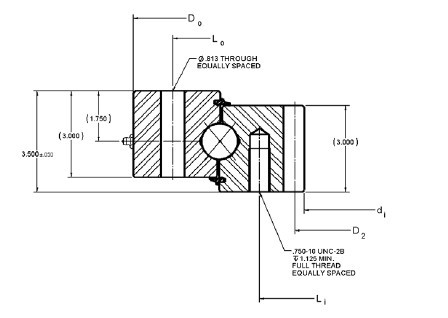

The bearing HT10-54N1Z bearing,HT10-54N1Z slewing bearing,HT10-54N1Z slewing ring,HT10-54N1Z turntable bearing dimension and rough drawing as follows:
|
Bearing type |
Boundary dimension |
Weight( Lbs) |
||
|
Outer diameter Do (In) |
Inner diameter di(In) |
Height(In) |
||
|
HT10-54N1Z |
60 |
48.16 |
3.5 |
775 |
HT10-54N1Z bearings have been used successfully in a variety of light to medium duty applications including:cranes,Aerial lifts,digger demicks,chute swivels,lift truck rotators,industrical turntable.
JinHang Precision Bearing mainly export high quantities HT10-54N1Z Slewing Bearing and relative products, we have huge stocks for HT10-54N1Z slewing ring and relative items, we supply high quality HT10-54N1Z four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in HT10-54N1Z turntable bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
JinHang Precision Bearing Co.,Ltd
E-mail: lyjh@lyjhbearing.com or lyjhbearing@gmail.com
MSN:lyjhbearing@hotmail.com
Skype: million556
