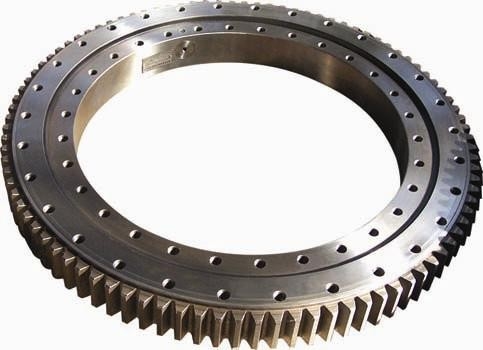

HT10-30E1Z slewing bearing with external gear,HT10-30E1Z slewing ring supplier
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
The bearing HT10-30E1Z bearing,HT10-30E1Z slewing bearing,HT10-30E1Z slewing ring,HT10-30E1Z turntable bearing description as follows:
• Bearing type: HT10-30E1Z bearing,HT10-30E1Z slewing bearing,
• HT10-30E1Z slewing ring,HT10-30E1Z turntable bearing
• Structure:four point contact ball slewing bearing with external gear
• Brand Name: JHB or OEM Required
• Bore Size: 24 inch size/609.6 mm metric size
• Outside Diameter:35.84 inch size/910.336 mm metric size
• Height:3.5 inch size/88.9mm metric size
• Gear Options: with external teeth/gear
• Seals Type: yes
• Lubrication:grease
• Bearing mark: Brand+HT10-30E1Z Or your requirement
• Place of Origin: LuoYang, China (Mainland)
• Delivery Time: 20-30 days
• Material: 50Mn,42CrMo
• The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case
• Payment: T/T or L/C
HT10-30E1Z slewing bearing Specifications
1. High precision: P5,P6,P0
2. Low noise
3. Long serive life
4. short delivery time
5. OEM service provided
6. Processing with supplied drawings

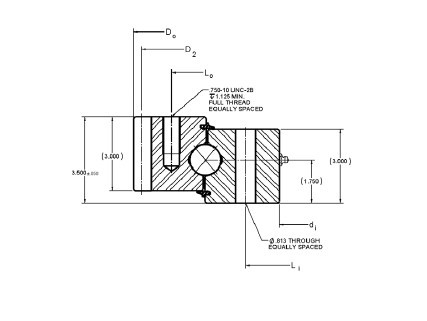

The bearing HT10-30E1Z bearing,HT10-30E1Z slewing bearing,HT10-30E1Z slewing ring,HT10-30E1Z turntable bearing dimension and rough drawing as follows:
|
Bearing type |
Boundary dimension |
Weight( Lbs) |
||
|
Outer diameter Do (In) |
Inner diameter di(In) |
Height(In) |
||
|
HT10-30E1Z |
66 |
54.16 |
3.5 |
398 |
HT10-30E1Z bearings have been used successfully in a variety of light to medium duty applications including:cranes,Aerial lifts,digger demicks,chute swivels,lift truck rotators,industrical turntable.
JinHang Precision Bearing mainly export high quantities HT10-30E1Z Slewing Bearing and relative products, we have huge stocks for HT10-30E1Z slewing ring and relative items, we supply high quality HT10-30E1Z four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in HT10-30E1Z turntable bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
