KH-325E slewing bearing application,KH-325E bearing dimension:31.667x28.5x2.5 inch size
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | Double Lip Seal |
|---|---|---|---|
| Number Of Row: | Single Row |

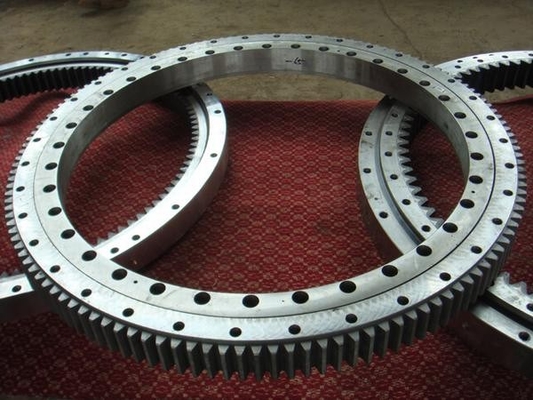

The bearing KH-325E bearing, KH-325E slewing bearing,KH-325E slewing ring,KH-325E turntable bearing description as follows:
• Bearing type: KH-325E bearing,KH-325E slewing bearing,
• KH-325E slewing ring,KH-325E turntable bearing
• Structure:four point contact ball slewing bearing with external gear
• Brand Name: JHB or OEM Required
• Bore Size: 28.5 inch size/723.9 mm metric size
• Outside Diameter:31.667 inch size/804.34 mm metric size
• Height:2. 5 inch size/63.5 mm metric size
• Teeth Options: with teeth/gear
• Seals Type: double lip seal
• Lubrication:grease
• Bearing mark: Brand+KH-325E Or your requirement
• Place of Origin: LuoYang, China (Mainland)
• Delivery Time: 20-30 days
• Sample:available
• Material: 50Mn,42CrMo
• The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case
• Payment: T/T or L/C
KH-325E slewing bearing Specifications
1. High precision: P5,P6,P0
2. Low noise
3. Long serive life
4. short delivery time
5. OEM service provided
6. Processing with supplied drawings

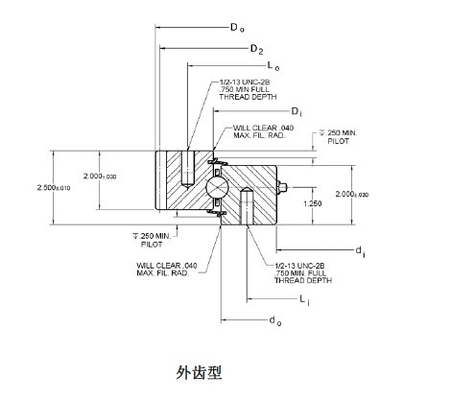

The bearing KH-325E bearing,KH-325E slewing bearing,KH-325E slewing ring,KH-325E turntable bearing dimension and rough drawing as follows:
|
Bearing type |
Boundary dimension |
Weight( Lbs) |
||
|
Outer diameter Do (In) |
Inner diameter di(In) |
Height(In) |
||
|
KH-325E |
31.667 |
28.5 |
2.5 |
205 |
KH-325E KH Series bearings have been used successfully in applications demanding higher precision,including:precision rotary index tables,radar antennas,statellite antennas,robots,medical equipment,machine tool tables and so on.
JinHang Precision Bearing mainly export high quantities KH-325E Slewing Bearing and relative products, we have huge stocks for KH-325E slewing ring and relative items, we supply high quality KH-325E four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in KH-325E turntable bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
