I.800.22.00.A slewing ring,I.800.22.00.A turntable bearing supplier,805x636x82 mm,OEM

All Products

Slewing bearing (633)

Turntable bearing (73)

Pinion gear (22)

Cylindrical roller bearing (397)

Rolling mill Bearing (132)

Tapered roller bearing (103)

Machine Parts (115)

Tandem Extruder Bearing (290)

Spherical roller bearing (145)

crossed roller bearing (215)

YRT Rotary table bearing (39)

Main Spindle Ball Bearing (646)

Thin section ball bearing (157)

Full complement cylindrical roller bearing (172)

Split roller bearing (135)

Spherical roller thrust bearing (102)

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

I.800.22.00.A slewing ring,I.800.22.00.A turntable bearing supplier,805x636x82 mm,OEM

Large Image : I.800.22.00.A slewing ring,I.800.22.00.A turntable bearing supplier,805x636x82 mm,OEM

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	Quality certificate
Model Number:	I.800.22.00.A

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

Name:I.800.22.00.A bearing is the TG Series I.22.A product., I.800.22.00.A slewing bearing, I.800.22.00.A slewing ring,I.800.22.00.A turntable bearing, I.800.22.00.A slewing bearing supplier

I.800.22.00.A four point contact ball slewing bearing with internal gear teeth technology parameter as follow:

Description	I.800.22.00.A slewing bearing
Outside and Inside diameter tolerances	in accordance with ISO2768-m
Dimension(ODXIDXH)	805x636x82 mm
Outer diameter(OD)	805 mm
Inner diameter(ID)	636 mm
Width/Height/(H)	82 mm
Fz nor	16.3KN
Fz max	32.6 KN
Gear teech P	648 MM
Gear teeth m	6
Gear teeth Z	108
weight	68kgs
Material	42CrMo,42CrMo4V,50Mn
Rolling	ball
Package	Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.
The delivery time	20-30 days
Serive	Technology communicate with engineer, and if you need the assembly drawing,we can send to you

Shipping term:TNT,FEDEX,DHL UPS Express or your required.

I.800.22.00.A slewing ring,I.800.22.00.A turntable bearing supplier,805x636x82 mm,OEM

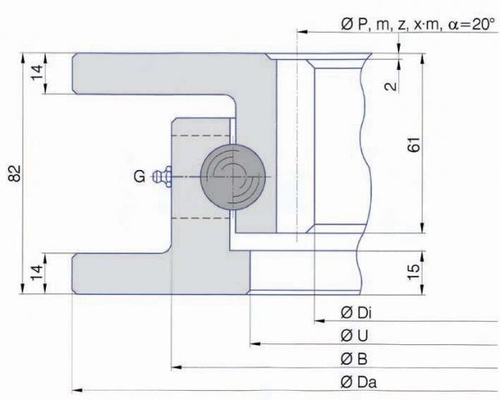

The bearing I.800.22.00.A Reference pictures as following:

I.800.22.00.A slewing ring,I.800.22.00.A turntable bearing supplier,805x636x82 mm,OEM

JinHang Precision Bearing mainly export high quantities I.800.22.00.A Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the I.800.22.00.A Slewing ring more, Please contact us as follow,Thanks for your trust!
