order I.1000.22.00.A-T bearing, I.1000.22.00.A-T slewing bearing,999x828x82 mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | No Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
Name:I.1000.22.00.A-T bearing is the TG Series I.22.A.T product., I.1000.22.00.A-T slewing bearing, I.1000.22.00.A-T slewing ring, I.1000.22.00.A-T turntable bearing, I. 1000.22.00.A-T slewing bearing supplier
I. 1000.22.00.A-T four point contact ball slewing bearing with internal gear teeth technology parameter as follow:
|
Description |
I. 1000.22.00.A-T slewing bearing |
|
Outside and Inside diameter tolerances |
in accordance with ISO2768-m |
|
Dimension(ODXIDXH) |
999x828x82 mm |
|
Outer diameter(OD) |
999 mm |
|
Inner diameter(ID) |
828 mm |
|
Width/Height/(H) |
82 mm |
|
Fz nor |
16.3KN |
|
Fz max |
32.6 KN |
|
Gear teech P |
840MM |
|
Gear teeth m |
6 |
|
Gear teeth Z |
120 |
|
weight |
75kgs |
|
Material |
42CrMo,42CrMo4V,50Mn |
|
Rolling |
ball |
|
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
|
The delivery time |
20-30 days |
|
Serive |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
Shipping term:TNT,FEDEX,DHL UPS Express or your required.

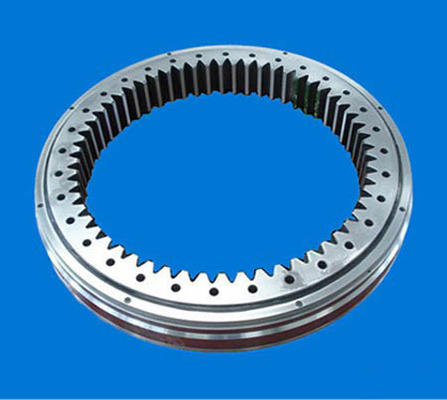

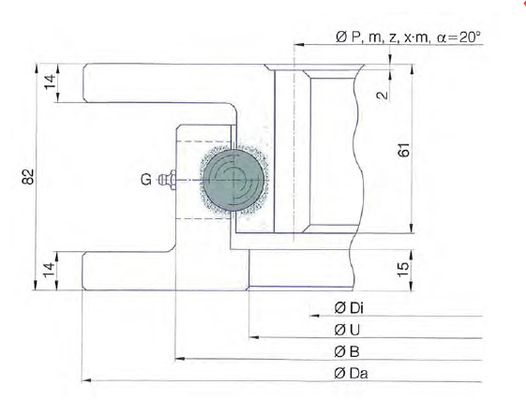

The bearing I.1000.22.00.A-T Reference pictures as following:
JinHang Precision Bearing mainly export high quantities I.1000.22.00.A-T Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the I.1000.22.00.A-T Slewing ring more, Please contact us as follow,Thanks for your trust!
