E.1380.32.15.D.1 bearing dimension:1380x1100x114 mm,long life,low noise,OEM required

Large Image : E.1380.32.15.D.1 bearing dimension:1380x1100x114 mm,long life,low noise,OEM required

Product Details:

Place of Origin:	E.1380.32.15.D.1
Brand Name:	JHB or OEM+E.1380.32.15.D.1
Certification:	E.1380.32.15.D.1 Quality certificate
Model Number:	E.1380.32.15.D.1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 20- 30 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	With Seal
Number Of Row:	Single Row

Name: E.1380.32.15.D.1 bearing is the TG Series E.32.D product., E.1380.32.15.D.1 slewing bearing, E.1380.32.15.D.1 slewing ring, E.1380.32.15.D.1 turntable bearing, E.1380.32.15.D.1 slewing bearing supplier

• Structure:four point contact ball slewing bearing with exteral gear

• Brand Name: JHB or OEM Required

• Bore Size: 1100 mm metric size

• Outside Diameter:1380 mm metric size

• Height:114mm metric size

• Teeth Options: with teeth/gear

• Seals Type: double lip seal

• Lubrication:grease

• Bearing mark: Brand+ E.1380.32.15.D.1 Or your requirement

• Place of Origin: LuoYang, China (Mainland)

• Delivery Time: 20-30 days

• Sample:available

• Material: 50Mn,42CrMo

• The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case

• Payment: T/T or L/C

E.1380.32.15.D.1 slewing bearing Specifications

1. High precision: P5,P6,P0

2. Low noise

3. Long serive life

4. short delivery time

5. OEM service provided

Description	E.1380.32.15.D.1 slewing bearing
Outside and Inside diameter tolerances	in accordance with ISO2768-m
Dimension(ODXIDXH)	1380x1100x114 mm
Outer diameter(OD)	1380mm
Inner diameter(ID)	1100mm
Width/Height/(H)	114mm
Fz nor	55 KN
Fz max	110 KN
Gear data	With external gear/teeth
Gear teech P	1350mm
Gear teeth m	10
Gear teeth Z	135
weight	350kgs

Shipping term:TNT,FEDEX,DHL UPS Express or by sea or by air or your rquired

E.1380.32.15.D.1 bearing dimension:1380x1100x114 mm,long life,low noise,OEM required

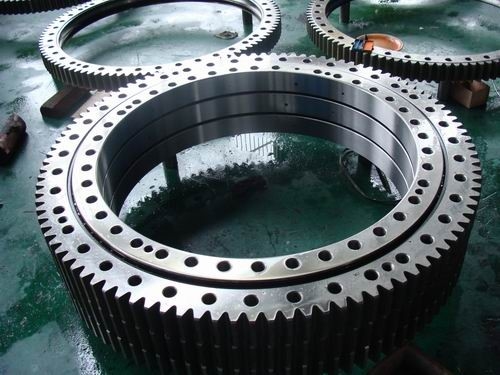

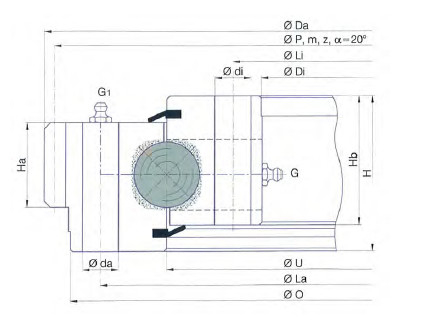

The bearing E.1380.32.15.D.1 Reference pictures as following:

E.1380.32.15.D.1 bearing dimension:1380x1100x114 mm,long life,low noise,OEM required

JinHang Precision Bearing mainly export high quantities E.1380.32.15.D.1 Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the E.1380.32.15.D.1 Slewing ring more, Please contact us as follow,Thanks for your trust!
