213DBS161y slewing bearing,213DBS161y turntable bearing,330x213x35 mm,stock
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
NSK 213DBS161y slewing bearings 330 x 213 x 35 mm for construction machinery
Type: DBS inner gear series slewing bearings for construction machinery.
Dimension : 330mm x 213mm x 35mm
Weight: 10KGS Original: made in JAPAN
The technical datasheet for NSK bearing 213DBS161y as follows:
|
Description |
213DBS161y bearing |
|
Bearing name |
213DBS161y slewing bearing 213DBS161y slewing ring 213DBS161y turntable bearing 213DBS161y four point contact ball slewing bearing |
|
Dimension(ODXIDXH) |
330 x 213 x 35 mm |
|
Outer diameter(OD) |
330 mm |
|
Inner diameter(ID) |
213 mm |
|
Width/Height/(H) |
35 mm |
|
Gear teech P |
219 mm |
|
Gear teeth m |
3 |
|
Gear teeth Z |
73 |
|
weight |
10.2kgs |
|
Material |
42CrMo,42CrMo4V,50Mn |
|
Rolling |
ball |
|
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
|
The delivery time |
20-30 days |
|
Serive |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
|
Contact us |
www.chinajhbearing.com www.lyjhbearing.com E-mail: lyjh@lyjhbearing.com Skype:million556 |
NSK 213DBS161y slewing bearings are widely used for constructions and industrial chineries,such as drive shovels, crane vehicles, thus to simplify the machine’s structure and maintenance.
The characteristic properties of 213DBS161y slewing bearing are:
one bearing itself can accommodate axial loads, couple loads and radical loads
mounting holes or bolts on bearing rings make the bearing mounting very easy;
bearings are pre-greased in manufacture factory and can be re-lubricated by grease holes.

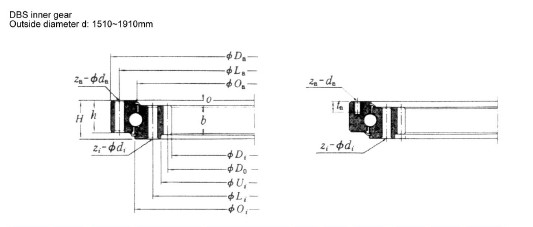

213DBS161y Detail bearing designations and drawings are illustrated in bearing table, please contact us for further information.
Shipping term:TNT,FEDEX,DHL UPS Express or by sea or by air or your rquired

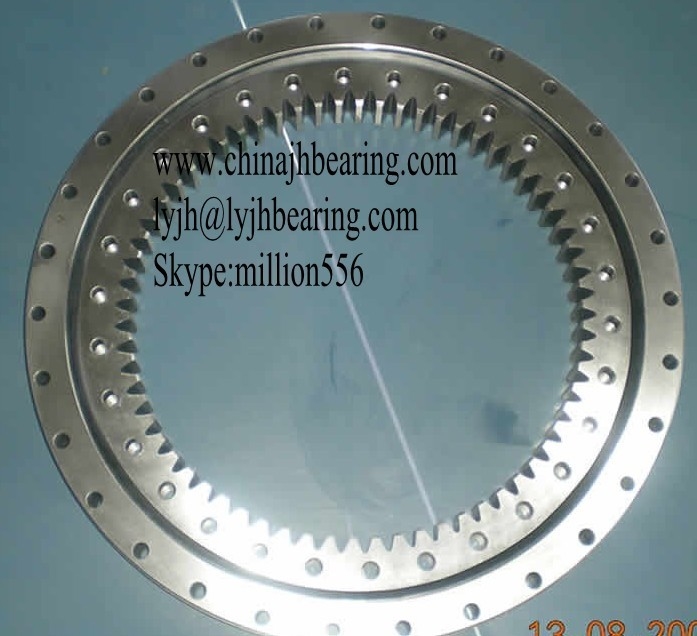

The bearing 213DBS161y Reference pictures as following:
JinHang Precision Bearing mainly export high quantities 213DBS161y Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the 213DBS161y Slewing ring more, Please contact us as follow,Thanks for your trust!
