249DBS101y four point contact ball slewing bearing supplier,374x249x43 mm

Large Image : 249DBS101y four point contact ball slewing bearing supplier,374x249x43 mm

Product Details:

Place of Origin:	249DBS101y
Brand Name:	JHB or OEM+ 249DBS101y
Certification:	249DBS101y Quality certificate
Model Number:	249DBS101y

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 20- 30 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	With Seal
Number Of Row:	Single Row

NSK 249DBS101y slewing bearings 374x249x43 mm for construction machinery

Type: DBS inner gear series slewing bearings for construction machinery.

Dimension : 374x249x43 mm

Weight: 14KGS Original: made in JAPAN

The technical datasheet for NSK bearing 249DBS101y as follows:

Description	249DBS101y bearing
Bearing name	249DBS101y slewing bearing 249DBS101y slewing ring 249DBS101y turntable bearing 249DBS101y four point contact ball slewing bearing
Dimension(ODXIDXH)	374x249x43 mm
Outer diameter(OD)	374 mm
Inner diameter(ID)	249 mm
Width/Height/(H)	43 mm
Gear teech P	255 mm
Gear teeth m	3
Gear teeth Z	85
weight	14kgs
Material	42CrMo,42CrMo4V,50Mn
Rolling	ball
Package	Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.
The delivery time	20-30 days
Serive	Technology communicate with engineer, and if you need the assembly drawing,we can send to you
Contact us	www.chinajhbearing.com www.lyjhbearing.com E-mail: lyjh@lyjhbearing.com lyjhbearing@gmail.com sales@lyjhbearing.com MSN:lyjhbearing@hotmail.com Skype:million556

NSK 249DBS101y slewing bearings are widely used for constructions and industrial chineries,such as drive shovels, crane vehicles, thus to simplify the machine’s structure and maintenance.

The characteristic properties of 249DBS101y slewing bearing are:

one bearing itself can accommodate axial loads, couple loads and radical loads

mounting holes or bolts on bearing rings make the bearing mounting very easy;

bearings are pre-greased in manufacture factory and can be re-lubricated by grease holes.

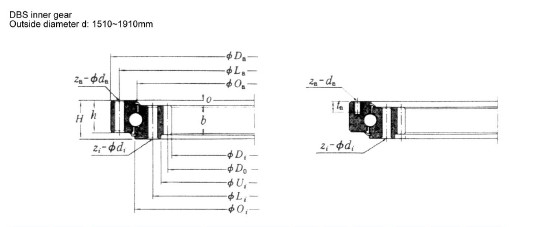

249DBS101y Detail bearing designations and drawings are illustrated in bearing table, please contact us for further information.

Shipping term:TNT,FEDEX,DHL UPS Express or by sea or by air or your rquired

249DBS101y four point contact ball slewing bearing supplier,374x249x43 mm

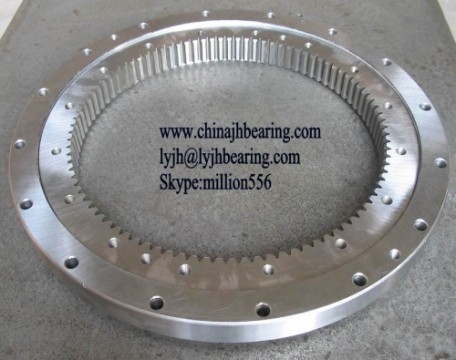

The bearing 249DBS101y Reference pictures as following:

249DBS101y four point contact ball slewing bearing supplier,374x249x43 mm

JinHang Precision Bearing mainly export high quantities 249DBS101y Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the 249DBS101y Slewing ring more, Please contact us as follow,Thanks for your trust!
