585DBS164y slewing bearings,585DBS164y turntable bearing,805x601x63 mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
NSK 585DBS164y slewing bearings 805x601x63 mm for construction machinery
Type: DBS inner gear series slewing bearings for construction machinery.
Dimension : 810x585x85 mm
Weight: 110KGS Original: made in JAPAN
The technical datasheet for NSK bearing 585DBS164y as follows:
|
Manufacture |
JinHang Precision Bearing Co.,LTD |
|
Description |
585DBS164y bearing |
|
Bearing name |
585DBS164y slewing bearing 585DBS164y slewing ring 585DBS164y turntable bearing 585DBS164y four point contact ball slewing bearing |
|
Dimension(ODXIDXH) |
810x585x85 mm |
|
Outer diameter(OD) |
810 mm |
|
Inner diameter(ID) |
585 mm |
|
Width/Height/(H) |
85mm |
|
Gear teech P |
600mm |
|
Gear teeth m |
8 |
|
Gear teeth Z |
75 |
|
weight |
110kgs |
|
Material |
42CrMo,42CrMo4V,50Mn |
|
Rolling |
ball |
|
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
|
The delivery time |
20-30 days |
|
Serive |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
|
Contact us |
www.chinajhbearing.com www.lyjhbearing.com E-mail: lyjh@lyjhbearing.com lyjhbearing@gmail.com Skype:million556 |
NSK 585DBS164y slewing bearings are widely used for constructions and industrial chineries,such as drive shovels, crane vehicles, thus to simplify the machine’s structure and maintenance.
The characteristic properties of 585DBS164y slewing bearing are:
one bearing itself can accommodate axial loads, couple loads and radical loads
mounting holes or bolts on bearing rings make the bearing mounting very easy;
bearings are pre-greased in manufacture factory and can be re-lubricated by grease holes.

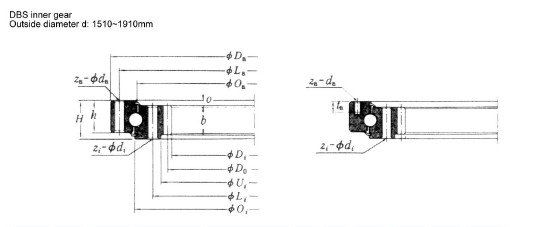

585DBS164y Detail bearing designations and drawings are illustrated in bearing table, please contact us for further information.
Shipping term:TNT,FEDEX,DHL UPS Express or by sea or by air or your rquired

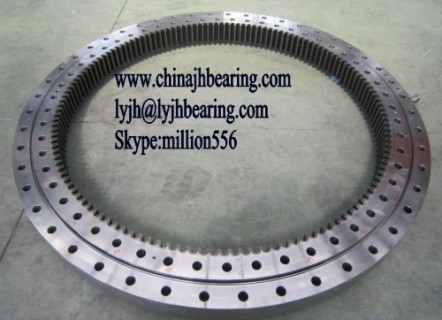

The bearing 585DBS164y Reference pictures as following:
JinHang Precision Bearing mainly export high quantities 585DBS164y Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the 585DBS164y Slewing ring more, Please contact us as follow,Thanks for your trust!
Contact us:
JinHang Precision bearing Co.,LTD
E-mail: lyjh@lyjhbearing.com
lyjhbearing@gmail.com
sales@lyjhbearing.com
Skype:milliom556
MSN:lyjhbearing@hotmail.com
