Spain customer order 792DBS101y slewing bearings 1055x792x115 mm,in stock
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
NSK 792DBS101y slewing bearings 1055x792x115 mm for construction machinery,The Spain customer order with us.
Type: DBS inner gear series slewing bearings for construction machinery.
Dimension : 1055x792x115 mm
Weight: 243KGS Original: made in JAPAN
The technical datasheet for NSK bearing 792DBS101y as follows:
|
Manufacture |
JinHang Precision Bearing Co.,LTD |
|
Description |
792DBS101y bearing |
|
Bearing name |
792DBS101y slewing bearing 792DBS101y slewing ring 792DBS101y turntable bearing 792DBS101y four point contact ball slewing bearing |
|
Dimension(ODXIDXH) |
1055x792x115 mm |
|
Outer diameter(OD) |
1055 mm |
|
Inner diameter(ID) |
792 mm |
|
Width/Height/(H) |
115mm |
|
Gear teech P |
808mm |
|
Gear teeth m |
8 |
|
Gear teeth Z |
101 |
|
weight |
243kgs |
|
Material |
42CrMo,42CrMo4V,50Mn |
|
Rolling |
ball |
|
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
|
The delivery time |
20-30 days |
|
Serive |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
|
Contact us |
www.chinajhbearing.com www.lyjhbearing.com E-mail: lyjh@lyjhbearing.com lyjhbearing@gmail.com Skype:million556 |
NSK 792DBS101y slewing bearings are widely used for constructions and industrial chineries,such as drive shovels, crane vehicles, thus to simplify the machine’s structure and maintenance.
The characteristic properties of 792DBS101y slewing bearing are:
one bearing itself can accommodate axial loads, couple loads and radical loads
mounting holes or bolts on bearing rings make the bearing mounting very easy;
bearings are pre-greased in manufacture factory and can be re-lubricated by grease holes.

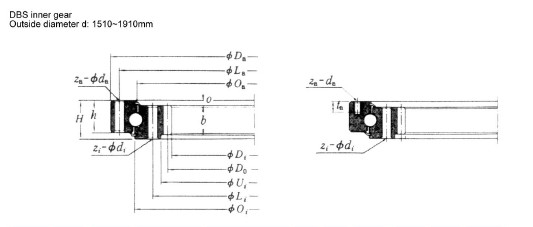

792DBS101y Detail bearing designations and drawings are illustrated in bearing table, please contact us for further information
Shipping term:TNT,FEDEX,DHL UPS Express or by sea or by air or your rquired

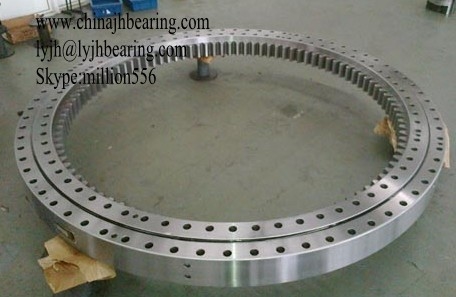

The bearing 792DBS101y Reference pictures as following:
JinHang Precision Bearing mainly export high quantities 792DBS101y Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the 792DBS101y Slewing ring more, Please contact us as follow,Thanks for your trust!
Contact us:
JinHang Precision bearing Co.,LTD
E-mail: lyjh@lyjhbearing.com
lyjhbearing@gmail.com
sales@lyjhbearing.com
Skype:milliom556
MSN:lyjhbearing@hotmail.com
