1084DBS101y slewing bearing 1395x1084x110 mm

Large Image : 1084DBS101y slewing bearing 1395x1084x110 mm

Product Details:

Place of Origin:	1084DBS101y
Brand Name:	JHB or OEM+ 1084DBS101y
Certification:	1084DBS101y Quality certificate
Model Number:	1084DBS101y

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 20- 30 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	With Seal
Number Of Row:	Single Row

NSK 1084DBS101y slewing bearings 1395x1084x110 mm for construction machinery

Type: DBS inner gear series slewing bearings for construction machinery.

Dimension: 1395x1084x110 mm

Weight: 400KGS Original: made in JAPAN

The technical datasheet for NSK bearing 1084DBS101y as follows:

Manufacture	JinHang Precision Bearing Co.,LTD
Description	1084DBS101y bearing
Bearing name	1084DBS101y slewing bearing 1084DBS101y slewing ring 1084DBS101y turntable bearing 1084DBS101y four point contact ball slewing bearing
Dimension(ODXIDXH)	1395x1084x110 mm
Outer diameter(OD)	1395 mm
Inner diameter(ID)	1084mm
Width/Height/(H)	110mm
Gear teech P	1080mm
Gear teeth m	12
Gear teeth Z	90
weight	400kgs
Material	42CrMo,42CrMo4V,50Mn
Rolling	ball
Package	Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.
The delivery time	20-30 days
Serive	Technology communicate with engineer, and if you need the assembly drawing,we can send to you
Contact us	www.chinajhbearing.com www.lyjhbearing.com E-mail: lyjh@lyjhbearing.com sales@lyjhbearing.com MSN:lyjhbearing@hotmail.com Skype:million556

NSK 1084DBS101y slewing bearings are widely used for constructions and industrial chineries,such as drive shovels, crane vehicles, thus to simplify the machine’s structure and maintenance.

The characteristic properties of 1084DBS101y slewing bearing are:

one bearing itself can accommodate axial loads, couple loads and radical loads

mounting holes or bolts on bearing rings make the bearing mounting very easy;

bearings are pre-greased in manufacture factory and can be re-lubricated by grease holes.

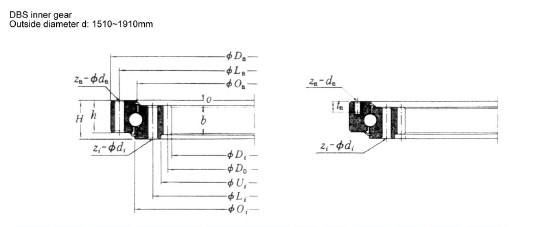

1084DBS101y Detail bearing designations and drawings are illustrated in bearing table, please contact us for further information.

Shipping term:TNT,FEDEX,DHL UPS Express or by sea or by air or your rquired

1084DBS101y slewing bearing 1395x1084x110 mm

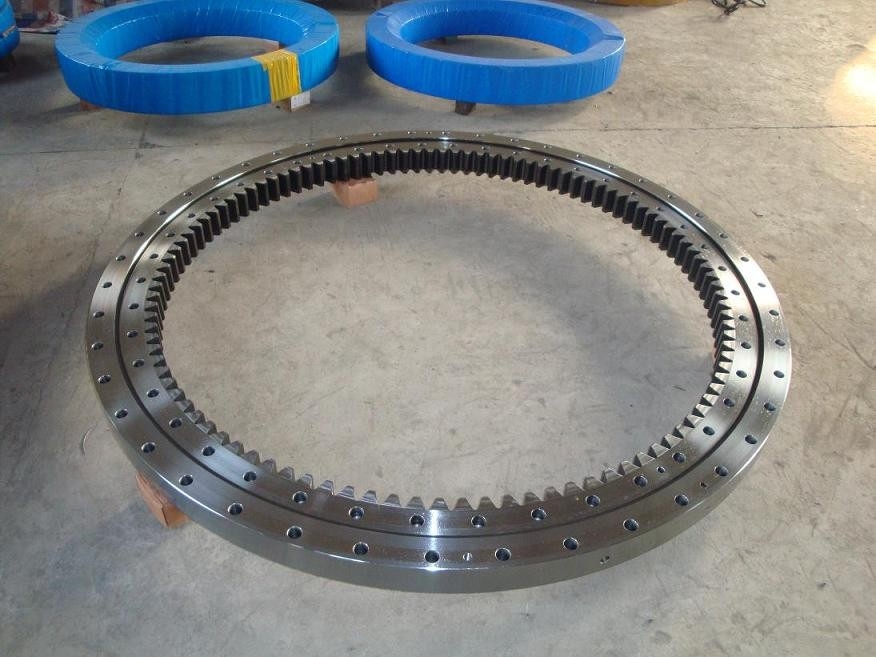

The bearing 1084DBS101y Reference pictures as following:

1084DBS101y slewing bearing 1395x1084x110 mm

JinHang Precision Bearing mainly export high quantities 1084DBS101y Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the 1084DBS101y Slewing ring more, Please contact us as follow,Thanks for your trust!
