slewing bearing Series 920 standard bearing type 90-20 0841/0-07052,948x734x56 mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
We/JinHang Precision bearing Co.,LTD can manufacutre the large-size slewing bearing,
The slewing bearing structure including signel row four point contact ball slewing bearing, doulbe row four point contact ball slewing bearing, double row different diameter ball slewing bearing, ball and roller combined slewing bearing and tri-row cylindrical roller combined slewing bearing etc. Above mentioned slewing bearings can also be divided into different structures of no gear type, external gear type and internal gear type as per if exist gear and gear teeth distributing position. Also we can accept the customer’s required technical data.
IMO slewing bearing Series 920 standard bearing type 90-20 0841/0-07052 Four point contact ball slewing bearing without teeth description as following:
|
Description |
90-20 0841/0-07052 slewing bearing |
|
Bearing type |
90-20 0841/0-07052 slewing ring 90-20 0841/0-07052 turntable bearing 90-20 0841/0-07052 four point contact ball slewing bearing |
|
Dimension(ODXIDXH) |
948x734x56 mm |
|
Outer diameter(OD) |
948 mm |
|
Inner diameter(ID) |
734 mm |
|
Width/Height/(H) |
56mm |
|
Dynamic load rating |
Cr:204 KN |
|
Ca:205 KN |
|
|
weight |
52kgs |
|
Material |
42CrMo,42CrMo4V,50Mn |
|
Rolling |
ball |
|
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
|
The delivery time |
20-30 days |
|
Service |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
|
Contact us |
www.chinajhbearing.com www.lyjhbearing.com E-mail: lyjh@lyjhbearing.com sales@lyjhbearing.com lyjhbearing@gmail.com Skype:million556 |
The bearing 90-20 0841/0-07052 slewing bearing shipping term:TNT,FEDEX,DHL UPS Express or by sea or by air or your rquired

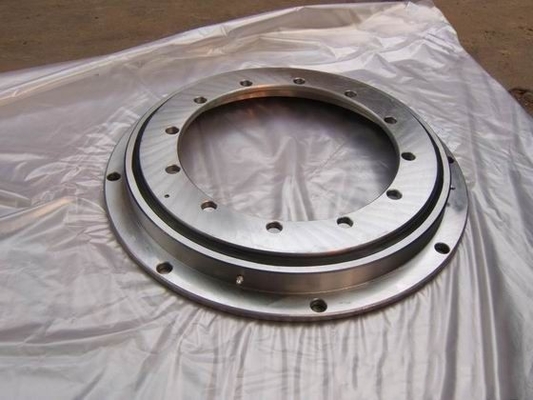

The bearing 90-20 0841/0-07052 Reference pictures as following:
JinHang Precision Bearing mainly export high quantities 90-20 0841/0-07052 Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the 990-20 0841/0-07052 Slewing ring more, Please contact us as follow,Thanks for your trust!
Contact us:
JinHang Precision bearing Co.,LTD
E-mail: lyjh@lyjhbearing.com
lyjhbearing@gmail.com
sales@lyjhbearing.com
Skype:milliom556
