91-20 0311/0-07103 slewing bearing 205x404x56mm,with gear,50Mn Material
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
We/JinHang Precision bearing Co.,LTD can manufacutre the large-size slewing bearing,
The slewing bearing structure including signel row four point contact ball slewing bearing, doulbe row four point contact ball slewing bearing, double row different diameter ball slewing bearing, ball and roller combined slewing bearing and tri-row cylindrical roller combined slewing bearing etc. Above mentioned slewing bearings can also be divided into different structures of no gear type, external gear type and internal gear type as per if exist gear and gear teeth distributing position. Also we can accept the customer’s required technical data.

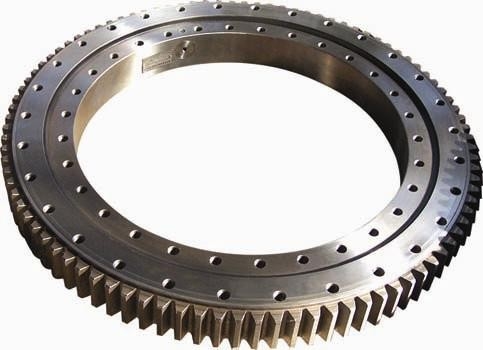

IMO slewing bearing Series 920 standard bearing type 91-20 0311/0-07103 Four point contact ball slewing bearing with external teeth description as following:
- Bearing type: 91-20 0311/0-07103 bearing, 91-20 0311/0-07103 slewing bearing,
- 91-20 0311/0-07103 slewing ring, 91-20 0311/0-07103 turntable bearing
- Structure:four point contact ball slewing bearing with external gear
- Brand Name: JHB or OEM Required
- Dimension:205x404x56mm
- Bore Size: 205 mm metric size
- Outside Diameter:404 mm metric size
- Height:56 mm metric size
- Teeth Options: without teeth/gear
- Seals Type: double lip seal
- Lubrication:grease
- Bearing mark: Brand+91-20 0311/0-07103 Or your requirement
- Place of Origin: LuoYang, China (Mainland)
- Delivery Time: 20-30 days
- Sample:available
- Material: 50Mn,42CrMo
- The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case
- Payment: T/T or L/C or Western Union
- 91-20 0311/0-07103 gearing/teeth specification:
- Pictch diamameter(do):395 mm
- Module:5mm
- Number of teeth: 79
91-20 0311/0-07103 slewing bearing Specifications
1. High precision: P5,P6,P0
2. Low noise
3. Long serive life
4. short delivery time
5. OEM service provided
6. Processing with supplied drawings

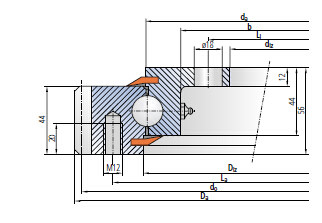

The bearing 91-20 0311/0-07103 China bearing, 91-20 0311/0-07103 China slewing bearing supplier, 91-20 0311/0-07103 slewing ring price, 91-20 0311/0-07103 turntable bearing dimension and rough drawing as follows:
|
Bearing type |
Boundary dimension |
Weight( kgs) |
||
|
Outer diameter Do (mm) |
Inner diameter di(mm) |
Height(mm) |
||
|
91-20 0311/0-07103 |
404 |
205 |
56 |
23 |
The bearing 90-20 1091/0-07073 slewing bearing shipping term:TNT,FEDEX,DHL UPS Express or by sea or by air or your rquired
JinHang Precision Bearing mainly export high quantities 90-20 1091/0-07073 Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the 90-20 1091/0-07073 Slewing ring more, Please contact us as follow,Thanks for your trust!
Contact us:
JinHang Precision bearing Co.,LTD
E-mail: lyjh@lyjhbearing.com
lyjhbearing@gmail.com
sales@lyjhbearing.com
Skype:milliom556
