014.30.500 four point contact ball slewing bearing,602x398x80 mm,42CrMo or 50Mn material

The slewing bearing structure including signel row four point contact ball slewing bearing, doulbe row four point contact ball slewing bearing, double row different diameter ball slewing bearing, ball and roller combined slewing bearing and tri-row cylindrical roller combined slewing bearing etc. Above mentioned slewing bearings can also be divided into different structures of no gear type, external gear type and internal gear type as per if exist gear and gear teeth distributing position. Also we can accept the customer’s required technical data.

             014.30.500 four point contact ball slewing bearing,602x398x80 mm,42CrMo or 50Mn material

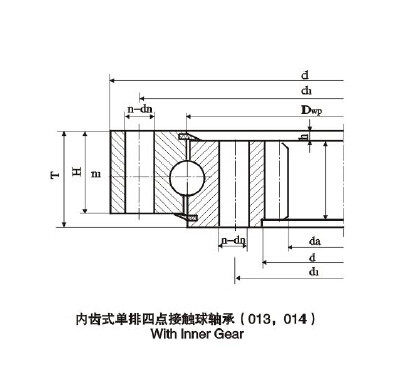

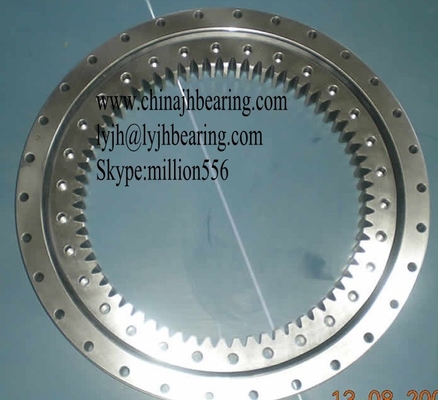

China slewing bearing code 014.30.500 four point contact ball slewing bearing with internal gear/teeth description as following:

Description:014.30.500  slewing bearing

Bearing type:014.30.500 slewing ring, 014.30.500 turntable bearing, 014.30.500 four point contact ball slewing bearing,

Dimension(ODXIDXH):602x398x80 mm

Outer diameter(OD):602  mm

Inner diameter(ID): 398 mm

Width/Height/(H): 80 mm

014.30.500  slewing bearing with gear parameter as following:

Module(m):6

014.30.500  slewing bearing application as following:

Rolling:ball

The delivery time: 20-30 days

Service: Technology communicate with engineer, and if you need the assembly drawing,we can send to you.

014.30.500 slewing bearing application as following:

floating crane for cargo,mobile crane for cargo,ship deck crane for grab,welding positioner,turntable for permanent rotation,tower crane,slewing crane for cargo,shipyard crance,steel mill crane,mobile crane for grad or heavy handling serivie,bridge crane for grad or magnet,floating crane for grad or magnet. Main slewing gear of bucket wheel excavator,reclaimer,stacker,boom conveyor,offshore crane. Railway crane,deck crane for cargo,conveyor waggon,cable excavator/dragline,swing shovel,hydraulic excavator,ladle car and so on.

If you  interesting the slewing bearing 014.30.500 or other slewing bearing price, please contact us as follows:
