Directly offer 014.40.900 slewing bearing 1022x778x100 mm,50Mn material,with teeth&rubber
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row | Rolling: | Ball |
| Clearance: | C1 C2 C0 | Teeth: | Internal Teeth |
We/JinHang Precision bearing Co.,LTD can manufacutre the large-size slewing bearing,
The slewing bearing structure including signel row four point contact ball slewing bearing, doulbe row four point contact ball slewing bearing, double row different diameter ball slewing bearing, ball and roller combined slewing bearing and tri-row cylindrical roller combined slewing bearing etc. Above mentioned slewing bearings can also be divided into different structures of no gear type, external gear type and internal gear type as per if exist gear and gear teeth distributing position. Also we can accept the customer’s required technical data.
Directly offer 014.40.900 slewing bearing 1022x778x100 mm,50Mn material,with teeth&rubber

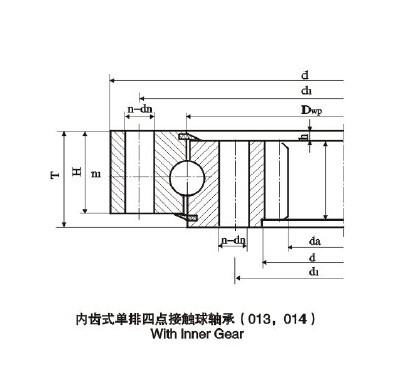

China slewing bearing code 014.40.900 four point contact ball slewing bearing with internal gear/teeth description as following:

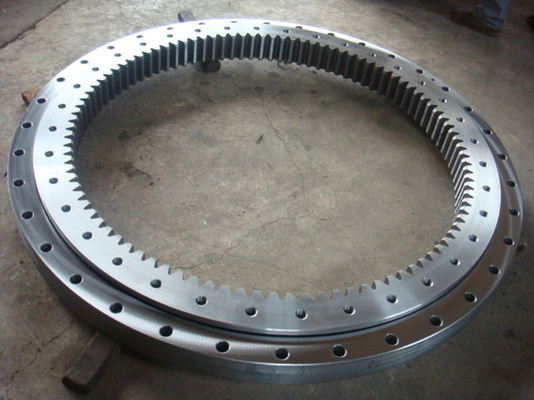

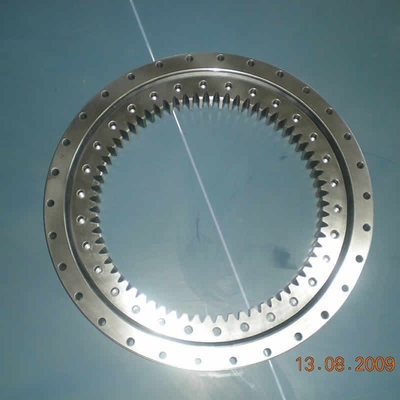

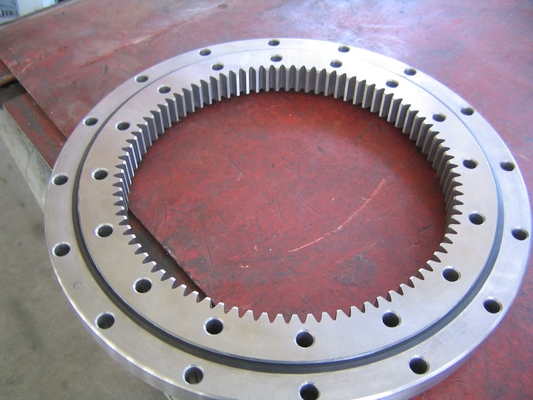

Description:014.40.900 slewing bearing
Bearing type:014.40.900 slewing ring, 014.40.900 turntable bearing, 014.40.900 four point contact ball slewing bearing,
Dimension(ODXIDXH):1022x778x100 mm
Outer diameter(OD):1022 mm
Inner diameter(ID): 778 mm
Width/Height/(H): 100 mm
014.40.900 slewing bearing with gear parameter as following:
Module(m):10 Roll: ball
The delivery time: 20-30 days
| Slewing bearing type | Outer dia(mm) | Inner dia(mm) | Height(mm) |
Module (m) |
| 014.40.900 | 1022 | 778 | 100 | 10 |
Service: Technology communicate with engineer, and if you need the assembly drawing,we can send to you.
014.40.900 slewing bearing application as following:
floating crane for cargo,mobile crane for cargo,ship deck crane for grab,welding positioner,turntable for permanent rotation,tower crane,slewing crane for cargo,shipyard crance,steel mill crane,mobile crane for grad or heavy handling serivie,bridge crane for grad or magnet,floating crane for grad or magnet. Main slewing gear of bucket wheel excavator,reclaimer,stacker,boom conveyor,offshore crane. Railway crane,deck crane for cargo,conveyor waggon,cable excavator/dragline,swing shovel,hydraulic excavator,ladle car and so on.
If you interesting the slewing bearing 014.40.900 or other slewing bearing price, please contact us as follows:
JinHang Precision Bearing Co.,Ltd
www.chinajhbearing.com www.lyjhbearing.com
E-mail: lyjh@lyjhbearing.com sales@lyjhbearing.com
lyjhbearing@gmail.com
Skype: million556
