014.45.1250 slewing bearing 1390x1110x110 mm 50Mn material,oil/grease lubrication

Large Image : 014.45.1250 slewing bearing 1390x1110x110 mm 50Mn material,oil/grease lubrication

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	014.45.1250 Quality certificate
Model Number:	014.45.1250

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	20-30 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Lubrication:	Oil Or Grease Available	Material:	50Mn
Teeth:	Internal Geart	Hardness Raceway:	58-62 HRC
Delivery Time:	25 Days

We/JinHang Precision bearing Co.,LTD can manufacutre the large-size slewing bearing,

The slewing bearing structure including signel row four point contact ball slewing bearing, doulbe row four point contact ball slewing bearing, double row different diameter ball slewing bearing, ball and roller combined slewing bearing and tri-row cylindrical roller combined slewing bearing etc. Above mentioned slewing bearings can also be divided into different structures of no gear type, external gear type and internal gear type as per if exist gear and gear teeth distributing position. Also we can accept the customer’s required technical data.

014.45.1250 slewing bearing1390x1110x110 mm internal gear 50Mn material

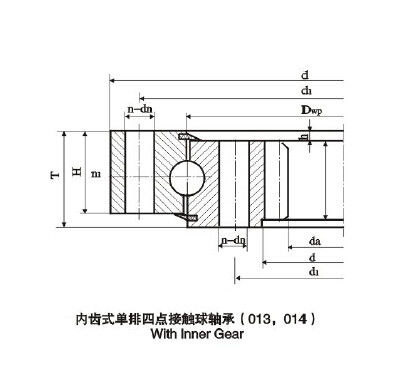

China slewing bearing code 014.45.1250 four point contact ball slewing bearing with internal gear/teeth description as following:

Description:014.45.1250 slewing bearing

Bearing type:014.45.1250 slewing ring, 014.45.1250 turntable bearing, 014.45.1250 four point contact ball slewing bearing,

Dimension(ODXIDXH):1390x1110x110 mm

Outer diameter(OD):1390 mm

Inner diameter(ID): 1110 mm

Width/Height/(H): 110 mm

014.45.1250 slewing bearing dimension following:

Bearing type	Outer dia(mm)	Inner dia(mm)	Height(mm)
014.45.1250	1390	1110	110

014.45.1250 slewing bearing with gear parameter as following:

Module(m):14

014.45.1250 slewing bearing application as following:5.1250 slewing bearing application as following:

Package: Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.

The delivery time: 20-30 days

Service: Technology communicate with engineer, and if you need the assembly drawing,we can send to you.

Raceway hardness: 58-62 HRC

Material :50 Mn /42CrMo available

Teeth: internal gear

014.45.1250 slewing bearing application as following:

floating crane for cargo,mobile crane for cargo,ship deck crane for grab,welding positioner,turntable for permanent rotation,tower crane,slewing crane for cargo,shipyard crance,steel mill crane,mobile crane for grad or heavy handling serivie,bridge crane for grad or magnet,floating crane for grad or magnet. Main slewing gear of bucket wheel excavator,reclaimer,stacker,boom conveyor,offshore crane. Railway crane,deck crane for cargo,conveyor waggon,cable excavator/dragline,swing shovel,hydraulic excavator,ladle car and so on.
