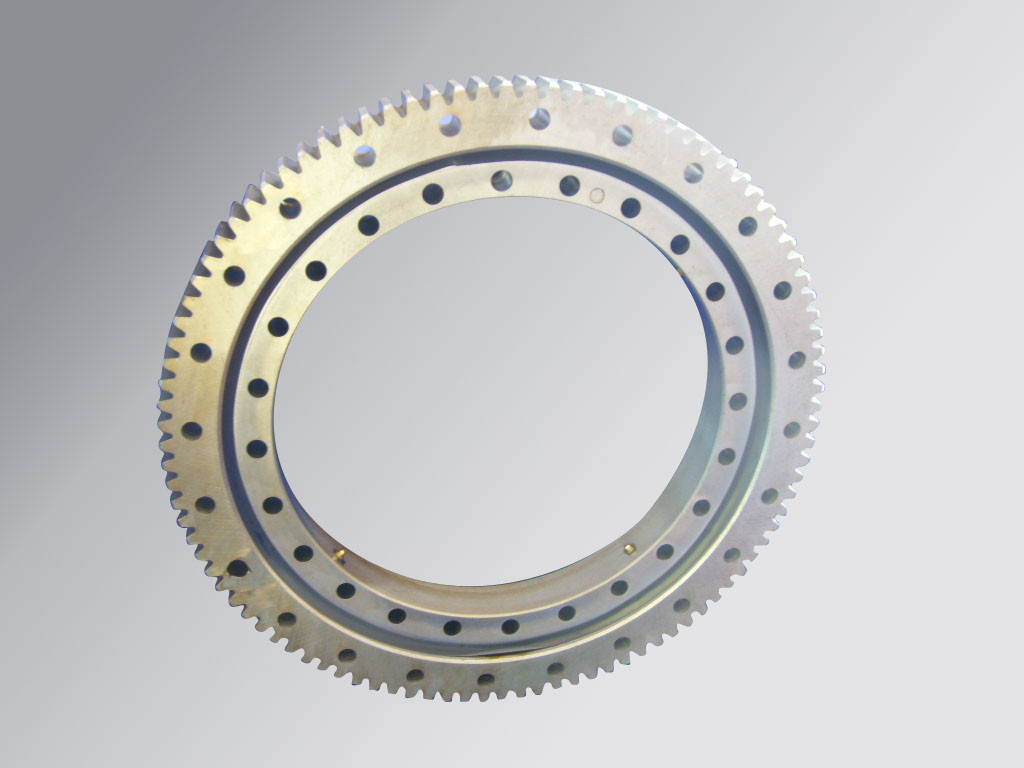

XSA140544N slewing bearing, XSA140544N crossed roller slewing bearing with external gear
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | Double Seal Rubber |
|---|---|---|---|
| Number Of Row: | Single Row |
XSA140544N Bearing,XSA140544N crossed roller slewing bearing with external gear teeth technology parameter as follow:
|
Description |
XSA140544N crossed roller slewing bearing |
|
Outside and Inside diameter tolerances |
in accordance with ISO2768-m |
|
dimension |
640.3x474x56 mm |
|
Outer diameter(OD) |
640.3 mm |
|
Inner diameter(ID) |
474 mm |
|
Width/Height/(H) |
56 mm |
|
Axial Ca |
270 KN |
|
Axial Cor |
680 KN |
|
Radial Ca |
170 KN |
|
Radial Cor |
330 KN |
|
Gear teech do |
630 |
|
Gear teeth m |
6 |
|
Gear teeth Z |
105 |
|
Material |
42CrMo,42CrMo4V,50Mn |
|
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
XSA140544N Crossed roller bearings structure description:

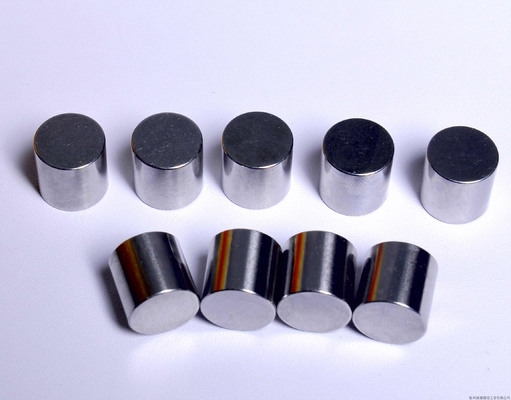

XSA140544N Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃

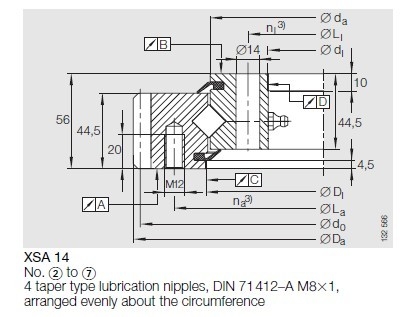

XSA14: Crossed roller bearing, standard series 14, external teeth, sealed, preloaded, lubrication nipple
on circumference of untoothed ring
Crossed roller bearings standard series 14 external gear teeth series XSA:
|
Designation |
Weight (kgs) |
Dimension (mm) |
Gear teeth |
Basic load ratings (KN) |
|||||||
|
Da |
di |
H |
do |
m |
z |
Axial Ca |
Axial Coa |
Radial Cr |
Radial Cor |
||
|
XSA 4 0414 N |
32 |
503.3 |
344 |
56 |
495 |
5 |
99 |
229 |
520 |
146 |
250 |
|
XSA 14 0544 N |
44 |
640.3 |
474 |
56 |
630 |
6 |
105 |
270 |
680 |
170 |
330 |
|
XSA 14 0644 N |
52 |
742.3 |
574 |
56 |
732 |
6 |
122 |
290 |
800 |
185 |
395 |
|
XSA 14 0744 N |
59 |
838.1 |
674 |
56 |
828 |
6 |
138 |
315 |
930 |
200 |
455 |
|
XSA 14 0844 N |
71 |
950.1 |
774 |
56 |
936 |
8 |
117 |
340 |
1050 |
215 |
510 |
|
XSA 14 0944 N |
77 |
1046.1 |
874 |
56 |
1032 |
8 |
129 |
360 |
1170 |
227 |
580 |
|
XSA 14 1094 N |
91 |
1198.1 |
1024 |
56 |
1184 |
8 |
148 |
390 |
1360 |
246 |
670 |
XSA140544N Bearing, XSA140544N Slewing ring, XSA140544N crossed roller slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly export high quantities XSA140544N Slewing Bearing and relative products, we have huge stocks for XSA140544N slewing ring and relative items, we supply high quality XSA140544N four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in XSA140544N Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
If you want to know more, please contact us as follows:
JinHang Precision Bearing Co.,Ltd
www.chinajhbearing.com www.lyjhbearing.com
E-mail: lyjh@lyjhbearing.com
Skype: million556
