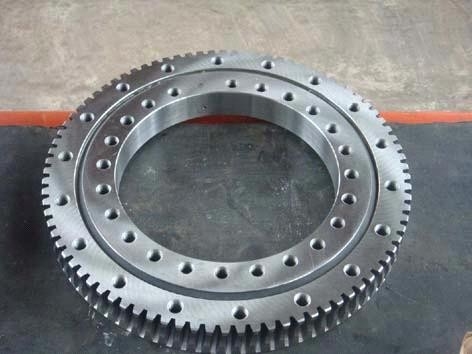

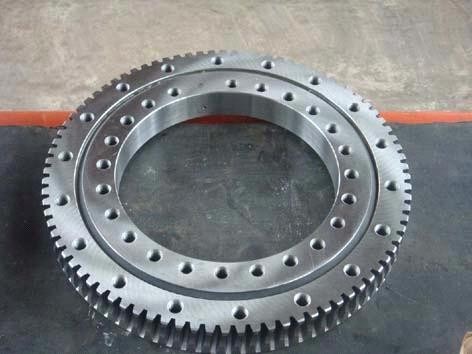

XA200352 H Crossed roller slewing bearing with external gear,XA200352 H slewing ring
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | Double Seal Rubber |
|---|---|---|---|
| Number Of Row: | Single Row |
XA200352H Bearing,XA200352H crossed roller slewing bearing with externl gear
teeth technology parameter as follow:
Description | XA200352H crossed roller slewing bearing |
Outside and Inside diameter tolerances | in accordance with ISO2768-m |
dimension | 462x274x59 mm |
Outer diameter(OD) | 462 mm |
Inner diameter(ID) | 274mm |
Width/Height/(H) | 59 mm |
Axial Ca | 335 KN |
Axial Cor | 720 KN |
Radial Ca | 214KN |
Radial Cor | 335 KN |
| Gear do | 450 mm |
| Gear m | 6 |
| Gear Z | 75 |
Material | 42CrMo,42CrMo4V,50Mn |
Package | Inside package: plastic film + kraft paper + blue tape; |
XA200352H Crossed roller bearings structure description:

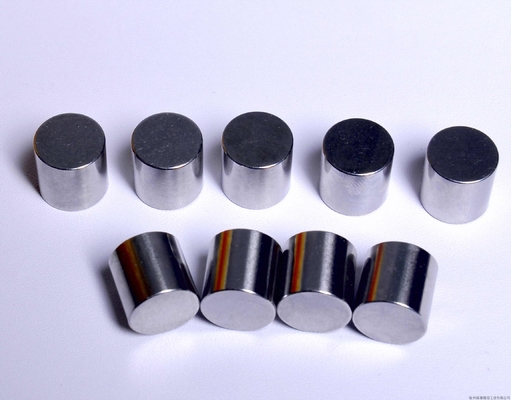

XA200352H Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃

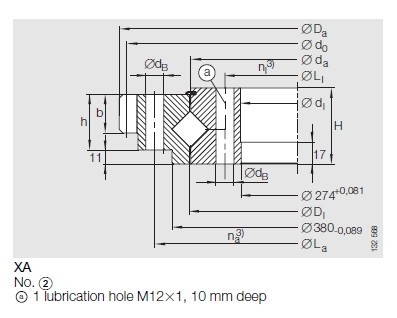

XA: Crossed roller bearing, external gear teeth, preloaded, sealed, lubrication nipple on circumference
of ring without teeth
Crossed roller bearing external gear teeth series XA:
Designation | Weight (kgs) | Dimension (mm) | Gear teeth | Basic load ratings (KN) | |||||||
Da | di | H | do | m | z | Axial Ca | Axial Coa | Radial Cr | Radial Cor | ||
XA120235 N | 13.3 | 318.8 | 171 | 40 | 312 | 4 | 78 | 135 | 235 | 86 | 115 |
XA200352 H | 34.5 | 462 | 274 | 59 | 450 | 6 | 75 | 335 | 720 | 214 | 335 |
XI120288 N | 12 | 340 | 216 | 38 | 224 | 4 | 56 | 150 | 290 | 95 | 141 |
XA200352H Bearing, XA200352H Slewing ring, XA200352H crossed roller slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly export high quantities XA200352H Slewing Bearing and relative products, we have huge stocks for XA200352H slewing ring and relative items, we supply high quality XA200352H four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in XA200352H Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
If you want to know more, please contact us as follows:
JinHang Precision Bearing Co.,Ltd
www.chinajhbearing.com www.lyjhbearing.com
E-mail: lyjh@lyjhbearing.com
MSN: lyjhbearing@hotmail.com
Skype: million556
