XU300515 Crossed roller slewing bearing no gear 646x384x86 mm

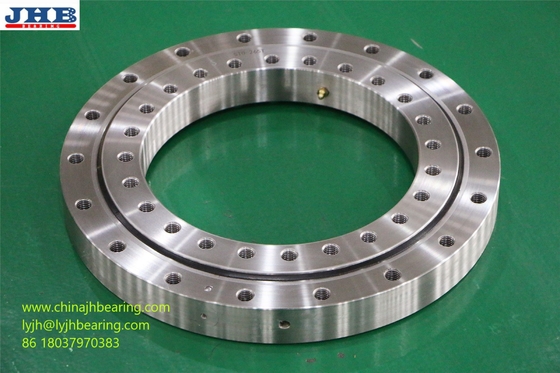

Large Image : XU300515 Crossed roller slewing bearing no gear 646x384x86 mm

Product Details:

Place of Origin:	China LuoYang
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality certificate
Model Number:	XU300515

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	Negotiated
Packaging Details:	standard export package
Delivery Time:	in stock ,if ex-stock,It will need 20-30 days
Payment Terms:	T/T,L/C, Western Union
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	Double Seal Rubber
Number Of Row:	Single Row	Outer Dia:	646mm
Inner Dia:	384mm	Height:	86mm

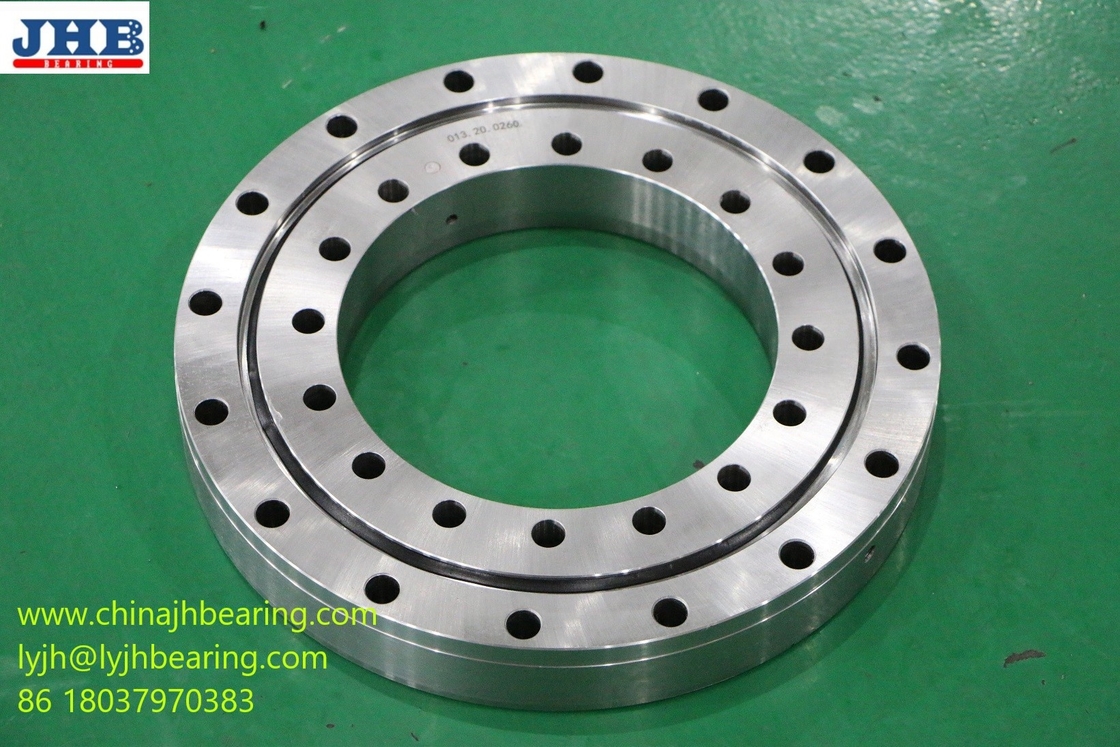

XU300515 Crossed roller slewing bearing no gear 646x384x86 mm

XU300515 Bearing XU300515 crossed roller slewing bearing no gear

teeth technology parameter as follow:

Description	XU300515 crossed roller slewing bearing
Outside and Inside diameter tolerances	in accordance with ISO2768-m
dimension	646x384x86 mm
Outer diameter(OD)	646 mm
Inner diameter(ID)	384 mm
Width/Height/(H)	86mm
Axial Ca	720 KN
Axial Cor	1370 KN
Radial Ca	455 KN
Radial Cor	670 KN
Material	42CrMo,42CrMo4V,50Mn
Package	Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.

XU300515 Crossed roller slewing bearing no gear 646x384x86 mm

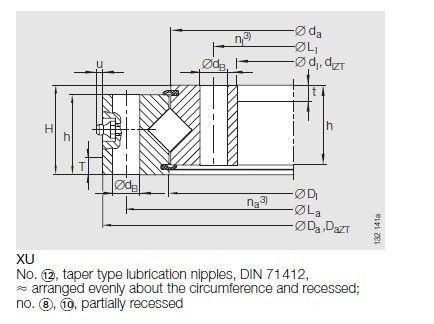

XU300515 crossed roller bearings structure description

XU300515 Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃

XU:Crossed roller bearing, without gear teeth, preloaded, sealed, lubrication nipple on circumference

of ring without teeth

Crossed roller bearing without gear teeth series XU:

XU300515 Crossed roller slewing bearing no gear 646x384x86 mm

Designation	Weight (kgs)	Dimension (mm)			Basic load ratings (KN)
Designation	Weight (kgs)	Da	di	H	Axial Ca	Axial Coa	Radial Cr	Radial Cor
XU050077	1.4	112	40	22	22.4	29	14.3	14.2
XU060094	2.4	140	57	26	32.5	37.5	20.7	18.4
XU060111	1.2	145.79	76.2	15.87	36	44.5	22.8	21.5
XU080120	4	170	69	30	56	53	35.5	26
XU080149	3.6	196.85	101.6	22.22	63	66	40	32.5
XU120179	7	234	124.5	35	118	179	75	88
XU120222	12	300	140	36	133	275	85	131
XU160260	16	329	191	46	212	350	135	173
XU080264	7	311	215.9	25.4	85	117	54	57
XU160405	25	474	336	46	270	550	172	270
XU080430	12	480	380	26	110	280	70	138
XU300515	115	646	384	86	720	1370	455	670

XU300515 Bearing, XU300515 Slewing ring, XU300515 crossed roller slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly export high quantities XU300515 Slewing Bearing and relative products, we have huge stocks for XU300515 slewing ring and relative items, we supply high quality XU300515 four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in XU300515 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.

XU300515 Crossed roller slewing bearing no gear 646x384x86 mm

Main Types:
Single row ball slewing ring bearings
Double row ball slewing ring bearings
Crossed roller slewing ring bearing
Three row cylindrical roller slewing bearings
BALL & ROLLER combined slewing bearings
Flanged slewing ring bearing
Gear Type:
Slewing bearings with external gear
Slewing bearings with internal gear
Slew bearings without gear
Flange type:
Slewing bearings with external flange and internal gear
Slew rings with internal flange and external gear
Slew bearings with external and internal flange
