RA5008UUCC0 crossed roller Bearing 50X66x8mm in stock,export to Inida customer
RA5008UUCC0 Crossed roller bearing specification:
Shaft dia:50mm
RA5008UUCC0 dimension:50X66x8mm
Inner ring dia:50 mm
Outer ring dia:66mm
Width:8 mm
The weight:0.16kgs
UU:with seal attached on both sides
U:with seal attached on one side
CCO:negative clearance
CO:positive clearance
C1:positive clearance(greater than CO)
Grade: No Symbol normal grade 0
USP:USP grade rotation accuracy
The delivery time: in stock

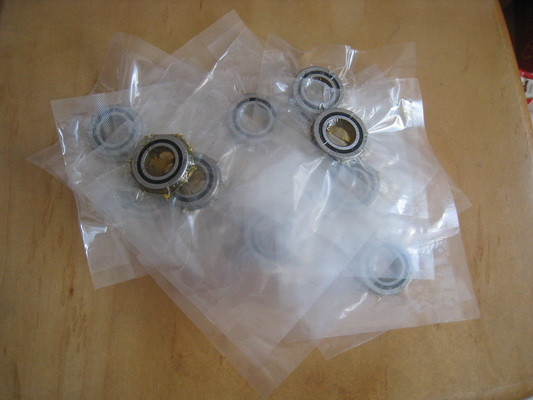

The package:vacuum packing and carton

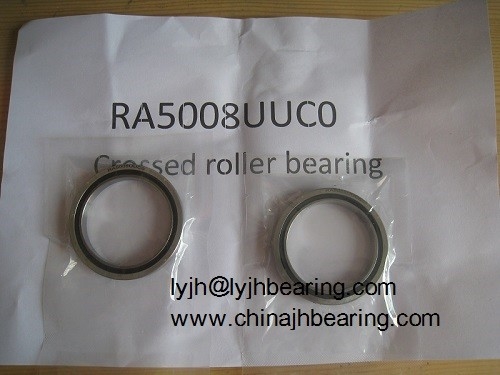

RA5008UUCC0 Bearing 50X66x8mm reference picture:

These bearings are widely used in the rotating parts of industrial robots, machine tools, medical equipment, etc., which require compactness, high rigidity and high rotational accuracy.
Heavy-duty transport robot
Structure:Vertical articulation
Location used:base swivel part
Required performance:this application requires not only high load capacity but also compactness
Model used:standard type crossed roller bearing CRB
Pick-up robot
Structure:horizontal articulation
Location used: joint swivel part
Required performance:smooth high speed movement is required to achieve high tact
Model used:high rigidity type crossed roller bearing CRBH---A

Welding robot
Structure:Vertical articulation
Location used: joint swivel part
Required performance:high-rigidity bearing with high rotational accuracy and low deflection
Model used:mounting holed type high rigidity crossed roller bearing CRBF---A

Transport robot
Structure:horizontal articulation
Location used: joint swivel part
Required performance:for high-rigidity,compactness,and use avoiding oil,corrosion-resistance without the use of anti-rust oil was required
