FAG 619/670MB.C3,619/670MA,619/670 deep groove Ball bearing supplier,670x900x103mm

Large Image : FAG 619/670MB.C3,619/670MA,619/670 deep groove Ball bearing supplier,670x900x103mm

Product Details:

Place of Origin:	China LuoYang
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality certificate
Model Number:	619/670MB.C3,619/670MA,619/670

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	standard export package
Delivery Time:	in stock ,if ex-stock,It will need 10-20 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

619/670MB.C3,619/670MA,619/670 deep groove ball bearing with super precision bearing, 619/670MB.C3,619/670MA,619/670 Bearing is a popular item that could be used in different application, the dimensions are 670x900x103 mm , 619/670MB.C3,619/670MA,619/670 Bearing with FAG 619 series are light series ball bearings, Brass cage and C3 clearance.
Item:619/670MB.C3,619/670MA,619/670 deep groove ball bearing
Type: FAG 619/670MB.C3,619/670MA,619/670 Rolling Bearings for Rolling Mills

Material:GCr15,GCr15SiMn, Chrome steel
Dimension: 670x900x103 mm,
ID(Inner diameter) bore:670 mm metric size
OD(Outer diameter) bore:900 mm metric size
Width/Height/Thichkness:103 mm metric size
Quantity: one bearing

The forging material:GCr15SiMn GCr15, Chrome steel

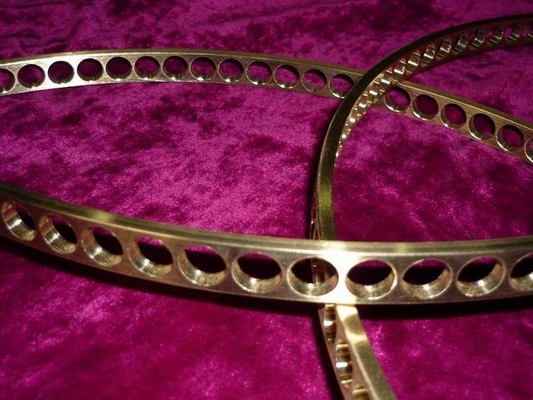

The cage type: brass cage

The delivery time: in stock, if we have no stock, the manufacture time:10-20 days

The package: standard export wooden case or carton boxes.

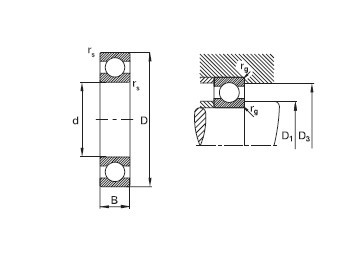

The bearing 619/670MB.C3,619/670MA,619/670 dimension technology parameter and rough drawing as follows:

Basic Dimensions(mm)

Bearing Designations

Precision Rating

basic load rating(KN)

Weight

(KGS)

Cor

670

900

103

619/670MB.C3,619/670MA,619/670

P5 P6 P0

640

1370

189

The following are FAG large size ball bearings:

Basic Dimensions(mm)			Bearing Designations	basic load rating(KN)		Weight (KGS)
d	D	B		Cr	Cor
160	220	28	61932M.C3	100	108	3.2
170	230	28	61934.C3	102	114	2.83
180	250	33	61936.C3	122	137	4.22
190	260	33	61938.C3	132	146	4.4
200	280	38	61940.C3	150	166	6.27
220	300	38	61944M.C3	176	204	7.84
240	320	38	61948M.C3	200	240	8.55
260	360	46	61952M.C3	220	280	14.4
280	380	46	61956M.C3	236	310	15.4
300	420	56	61960M.C3	285	400	24.5
320	440	56	61964M.C3	300	430	25.9
340	460	56	61968MB.C3	305	455	26.9
360	480	56	61972MB.C3	310	480	28.2
380	520	65	61976MB.C3	365	585	41.4
400	540	65	61980MB.C3	375	620	42.6
420	560	65	61984MB.C3	390	655	44.9
440	600	74	61988MB.C3	390	670	62.9
460	620	74	61992MB.C3	400	710	70
480	650	78	61996MB.C3	440	815	74.6
500	670	78	619/500MB.C3	440	800	77.9
530	710	82	619/530MB.C3	455	850	98.8
560	750	85	619/560MB.C3	510	1000	109
600	800	90	619/600MB.C3	550	1120	128
630	850	100	619/630MB.C3	630	1320	168
670	900	103	619/670MB.C3	640	1370	189
710	950	106	619/710MB.C3	680	1530	222
750	1000	112	619/750MB.C3	720	1660	245
800	1060	115	619/800MB.C3	800	1900	282
850	1120	118	619/850MB.C3	815	2000	333

JinHang Precision Bearing mainly export high quantities 619/670MB.C3,619/670MA,619/670 Ball Bearing and relative products, we have huge stocks for 619/670MB.C3,619/670MA,619/670 deep groove ball bearing and relative items, we supply high quality 619/670MB.C3,619/670MA,619/670 Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in 619/670MB.C3,619/670MA,619/670 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
