60/530,60/530M,60/530MB deep groove Ball bearing 530x780x112 mm,60/530 bearing supplier

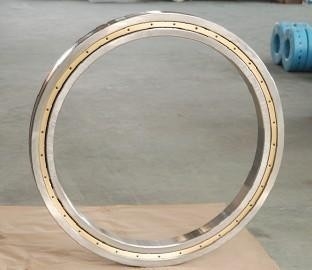

Large Image : 60/530,60/530M,60/530MB deep groove Ball bearing 530x780x112 mm,60/530 bearing supplier

Product Details:

Place of Origin:	China LuoYang
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality certificate
Model Number:	60/530,60/530M,60/530MB

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	standard export package
Delivery Time:	in stock ,if ex-stock,It will need 10-20 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

60/530,60/530M,60/530MB deep groove ball bearing with super precision bearing, 60/530,60/530M,60/530MB Bearing is a popular item that could be used in different application, the dimensions are 530x780x112 mm ,  60/530,60/530M,60/530MB Bearing with FAG 60 series ball bearings, Brass cage and C3 clearance.
Item:  60/530,60/530M,60/530MB   deep groove ball bearing
Type:  FAG 60/530,60/530M,60/530MB   Rolling Bearings for Rolling Mills

Material:GCr15,GCr15SiMn, Chrome steel
Dimension: 530x780x112 mm,
ID(Inner diameter) bore:530 mm metric size
OD(Outer diameter) bore:780 mm metric size
Width/Height/Thichkness:112 mm metric size
Quantity: one bearing

The forging material:GCr15SiMn GCr15, Chrome steel

The cage type: brass cage

The delivery time: in stock, if we have no stock, the manufacture time:10-20 days

The package: standard export wooden case or carton boxes.

The bearing 60/530,60/530M,60/530MB dimension technology parameter and rough drawing as follows:

Basic Dimensions(mm)

Bearing Designations

Precision Rating

basic load rating(KN)

Weight

(KGS)

Cor

530

780

112

60/530,60/530M,60/530MB

P5 P6 P0

710

1400

190

The following are FAG large size ball bearings:

Basic Dimensions(mm)			Bearing Designations	basic load rating(KN)		Weight (KGS)
d	D	B		Cr	Cor
100	150	24	6020	60	54	1.32
105	160	26	6021	71	64	1.68
110	170	28	6022	80	71	2.06
120	180	28	6024	83	78	2.18
130	200	33	6026	104	100	3.33
140	210	33	6028	108	108	3.56
150	225	35	6030	122	125	4.38
160	240	38	6032M	137	134	6.12
170	260	42	6034M	170	173	8.27
180	280	46	6036M	186	196	10.7
190	290	46	6038M	196	212	11.3
200	310	51	6040M	212	240	14.4
220	340	56	6044M	245	290	18.8
240	360	56	6048M	255	315	20.5
260	400	65	6052M	300	390	31.6
280	420	65	6056M	310	425	33.5
300	460	74	6060MB	365	510	47.4
320	480	74	6064MB	380	560	50
340	520	82	6068MB	440	695	67.1
360	540	82	6072MB	455	735	68
380	560	82	6076MB	455	750	72.9
400	600	90	6080MB	520	865	92.6
420	620	90	6084MB	530	930	100
440	650	94	6088MB	550	965	110
460	680	100	6092MB	585	1060	127
480	700	100	6096MB	600	1120	139
500	720	100	60/500MB	610	1140	137
530	780	112	60/530MB	710	1400	190
560	820	115	60/560MB	765	1530	209
600	870	118	60/600MB	780	1660	245
630	920	128	60/630MB	880	1900	289
670	980	136	60/670MB	965	2160	352
710	1030	140	60/710MB	1020	2320	389
750	1090	150	60/750MB	1100	2650	463
800	1150	155	60/800MB	1140	2800	538
850	1220	165	60/850MB	1220	3150	624

JinHang Precision Bearing mainly export high quantities 60/530,60/530M,60/530MBBall Bearing and relative products, we have huge stocks for 60/530,60/530M,60/530MB deep groove ball bearing and relative items, we supply high quality 60/530,60/530M,60/530MB Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us supply best service to our clients. If you are interested in 60/530,60/530M,60/530MB Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
