514645 deep groove ball bearing,514645 bearing 650x920x118mm,chrome steel material

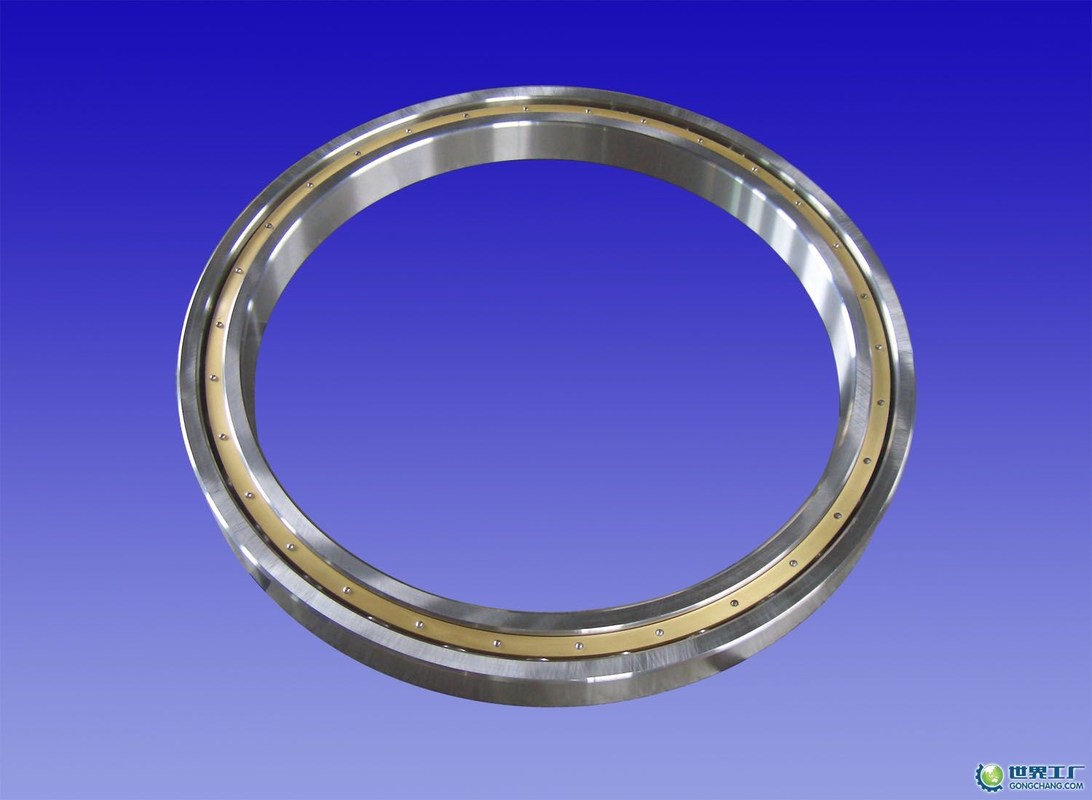

Large Image : 514645 deep groove ball bearing,514645 bearing 650x920x118mm,chrome steel material

Product Details:

Place of Origin:	China LuoYang
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality certificate
Model Number:	514645

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	standard export package
Delivery Time:	in stock ,if ex-stock,It will need 10-20 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

FAG 514645 deep groove ball bearing with super precision bearing,514645 Bearing is a popular item that could be used in different application, the dimensions are 650x920x118mm, 514645 Bearing with ball bearings, Brass cage and clearance.
Item:514645 deep groove ball bearing
Type: FAG 514645 Rolling Bearings for Rolling Mills

Material:GCr15,GCr15SiMn, Chrome steel
Dimension: 650x920x118mm

ID(Inner diameter) bore:650 mm metric size
OD(Outer diameter) bore:920 mm metric size
Width/Height/Thichkness:118 mm metric size
Quantity: one bearing

The forging material:GCr15SiMn GCr15, Chrome steel

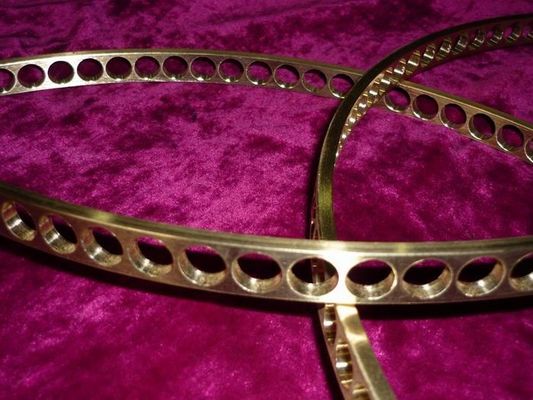

The cage type: brass cage

The delivery time: in stock, if we have no stock, the manufacture time:10-20 days

The package: standard export wooden case or carton boxes.

The bearing 514645 dimension technology parameter and rough drawing as follows:

Basic Dimensions(mm)

Bearing Designations

Precision Rating

basic load rating(KN)

Weight

(KGS)

Cor

650

920

118

514645

P5 P6 P0

750

1630

262

The following are FAG large size ball bearings:

Basic Dimensions(mm)			Bearing Designations	basic load rating(KN)		Weight (KGS)
d	D	B		Cr	Cor
150	229.5	35	538271	122	125	5.45
150	230	35	506964	122	125	5.5
160	229.5	33	567422	102	114	4.34
160	230	33	574960	102	114	4.38
180	259.5	33	507540	122	137	5.88
190	269.5	33	502288	132	146	6.31
190	280	33	510452	132	146	7.45
200	279.5	38	508728	150	166	7.17
200	289.5	38	502283	150	166	8.46
220	309.5	38	800679HA	176	204	9.19
220	309.5	38	507335	176	204	9.19
230	329.5	40	508729	200	240	11.5
230	329.5	40	801656HA	200	240	11.5
240	329.5	40	578545	196	240	10.4
260	369.5	46	507338A	220	280	16.4
280	389.5	46	507341	236	310	17.5
290	409.5	60	578599	310	425	26.2
300	419.5	56	538205	285	400	24.4
330	460	56	509173	305	455	29.6
340	479.5	60	538204	280	415	35.7
340	489.5	65	576368	345	510	40.9
350	500	70	532002	355	550	44.3
360	550	85	533303	455	735	75.4
380	519.5	65	576367	365	585	40.3
420	559.5	65	576366	390	655	45.6
420	580	70	544178	380	640	57
500	700	100	530352	585	1120	116
530	760	100	508780HA	600	1160	158
530	780	112	529220HA	710	1400	190
640	940	128	508308	815	1760	327
650	920	118	514645	750	1630	262
670	850	85	509029	550	1180	118
710	1000	140	502954	880	2000	361
710	1030	140	534196HA	1020	2320	394
710	1080	160	528283HA	1140	2700	534
750	1016	125	565323HA	830	2000	312
760	1080	150	500909HA	1100	2650	381
800	1080	115	526190	865	2080	313
800	1150	155	801911HA	1140	2800	538
850	1220	165	501657HA	1220	3150	629
860	1130	120	529055HA	930	2360	337

JinHang Precision Bearing mainly export high quantities 514645 Ball Bearing and relative products, we have huge stocks for 514645 deep groove ball bearing and relative items, we supply high quality 514645 Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us supply best service to our clients. If you are interested in 514645 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
