NNU4932MAW33 two row cylindrical roller bearing 160x220x60mm Power generation use offer sample
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P4 P5 P6 P0 | Seals Type: | No Seal |
|---|---|---|---|
| Number Of Row: | Double Row | Material: | GCr15SiMn |
| Clearance: | C1 C2 C0 Available | Cage Material: | Brass Steel Material Available |
NNU4932MAW33 two row cylindrical roller bearing 160x220x60mm Power generation use offer sample
Two-row cylindrical roller bearing NNU4932MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.

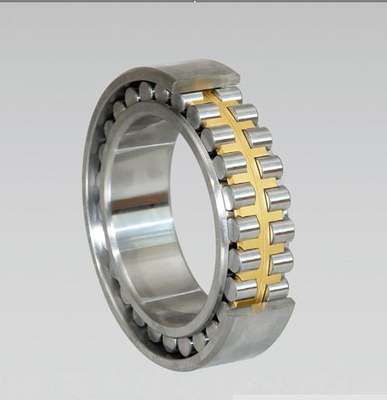

The cylindrical roller bearings NNU4932MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage
The NNU4932MAW33cylindrical roller bearing description as follows:
|
Name |
Double/tow row cylindrical roller bearing NNU4932MAW33 |
|
|
Bearing type |
NNU4932MAW33 |
|
|
Dimension |
160x220x60 mm |
|
|
ID(inner diameter)/Bore |
160 mm |
|
|
OD(outer diameter) |
220 mm |
|
|
Width/Height/thickness |
60 mm |
|
|
Load Rating |
Static |
692 KN |
|
Dynamic |
380 KN |
|
|
Speed Ratings |
Oil |
2000 RPM |
|
Grease |
1700 RPM |
|
|
Weight |
6.6KGS |
|
|
Delivery time |
In stock, If ex-stock, the manufacture time about 15-20 days |
|
|
package |
Standard export wooden case |
|
|
Quality standard |
I S O 2 4 6/ GB/T 283 |
|
|
Material |
GCr15 GCr15SiMn |
|
|
HS Code |
8482500090 |
|
JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NNU4932MAW33 Bearing and relative products, we have huge stocks for NNU4932MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NNU4932MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
Quality control:
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
Quality control:
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
Full-Complement (NCF)
The full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial
displacements.
TWO-ROW BEARINGS

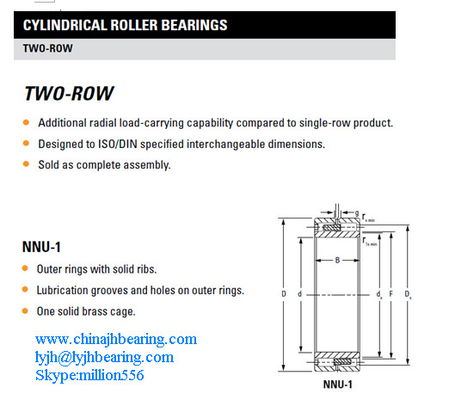

Two-row, or double-row, cylindrical bearings offer added radial capacity over tradition one-row types. These bearing types are interchangeable so the dimensions and diameter under the rollers (NNU style) and diameter over the rollers (NN style) are held to an ISO/DIN standard. The standard cage design is a drilled pocket, finger-style retainer
FOUR-ROW BEARINGS
Four-row cylindrical bearings have an extremely high radial load capacity, but no thrust capacity. This bearing type is mostly used in roll neck and work roll applications in the metal rolling industry. Straight and tapered bore designs are available.
The full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial
displacements.
TWO-ROW BEARINGS
Two-row, or double-row, cylindrical bearings offer added radial capacity over tradition one-row types. These bearing types are interchangeable so the dimensions and diameter under the rollers (NNU style) and diameter over the rollers (NN style) are held to an ISO/DIN standard. The standard cage design is a drilled pocket, finger-style retainer
FOUR-ROW BEARINGS
Four-row cylindrical bearings have an extremely high radial load capacity, but no thrust capacity. This bearing type is mostly used in roll neck and work roll applications in the metal rolling industry. Straight and tapered bore designs are available.
