NNU4140MAW33 bearing 200x340x140mm Mining cement mill shaft Brass cage

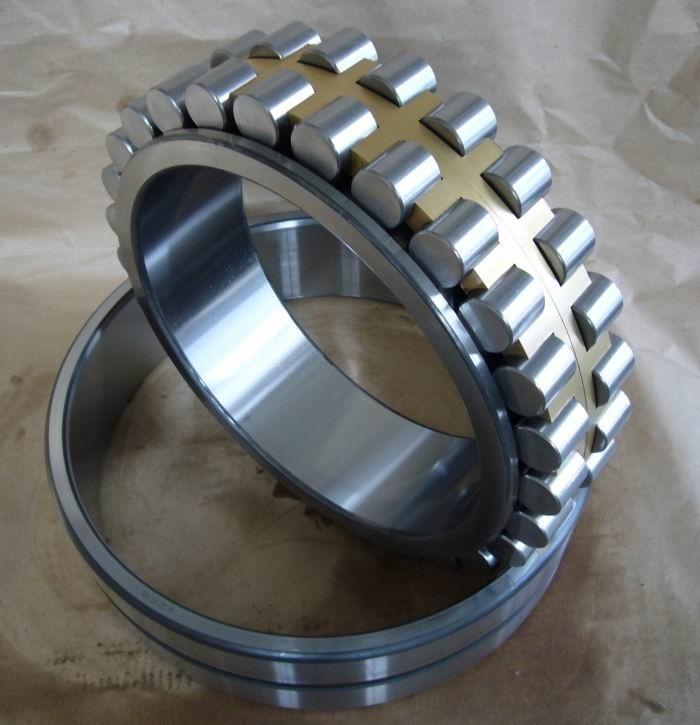

Large Image : NNU4140MAW33 bearing 200x340x140mm Mining cement mill shaft Brass cage

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	Quality certificate
Model Number:	NNU4140MAW33

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 10 days
Payment Terms:	T/T,L/C, Western Union
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Double Row	Ring Material:	GCr15SiMn
Cage Material:	Brass Steel Material	Roller Mateiral:	GCr15
Term:	FOB CIF EXW Available	Application:	Power Generation • Oil Fields • Crop Shears • Gear Drives • Hoists • Metals Construction • Mining

NNU4140MAW33 bearing 200x340x140mm Mining cement mill shaft Brass cage

Two-row cylindrical roller bearing NNU4140MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.

The cylindrical roller bearingsNNU4140MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage

The NNU4140MAW33 cylindrical roller bearing description as follows: NNU4140MAW33 bearing 200x340x140mm Mining cement mill shaft Brass cage

Name		Double/tow row cylindrical roller bearing NNU4140MAW33
Bearing type		NNU4140MAW33
Dimension		200x340x140 mm
ID(inner diameter)/Bore		200 mm
OD(outer diameter)		340 mm
Width/Height/thickness		140 mm
Load Rating	Static	2460 KN
	Dynamic	1690 KN
Speed Ratings	Oil	1200 RPM
	Grease	1000 RPM
Weight		51 KGS
Delivery time		In stock, If ex-stock, the manufacture time about 15-20 days
package		Standard export wooden case
Quality standard		I S O 2 4 6/ GB/T 283
Material		GCr15 GCr15SiMn
HS Code		8482500090

JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NNU4140MAW33 Bearing and relative products, we have huge stocks for NNU4140MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NNU4140MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!

Full-Complement (NCF)
The full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial
displacements.
TWO-ROW BEARINGS
Two-row, or double-row, cylindrical bearings offer added radial capacity over tradition one-row types. These bearing types are interchangeable so the dimensions and diameter under the rollers (NNU style) and diameter over the rollers (NN style) are held to an ISO/DIN standard. The standard cage design is a drilled pocket, finger-style retainer
FOUR-ROW BEARINGS
Four-row cylindrical bearings have an extremely high radial load capacity, but no thrust capacity. This bearing type is mostly used in roll neck and work roll applications in the metal rolling industry. Straight and tapered bore designs are available.

In a cylindrical roller bearing, the rollers and racewaysare in linear contact. Consequently this type of bearing can support a larger radial load than a point-contact ball bearing. Also, its structure is suitable for high-speed operation.
A cylindrical roller bearing used for the main spindle of a machine tool can have either a double- or singlerow configuration, and certain variants have a tapered bore so the radial internal clearance can be adjusted.

cylindrical roller bearings effectively reduce friction and
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
