NNU4148MAW33 cylindrical roller bearing 240x400x160 mm for Wheel-end planetaries in stock

Large Image : NNU4148MAW33 cylindrical roller bearing 240x400x160 mm for Wheel-end planetaries in stock

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	Quality certificate
Model Number:	NNU4148MAW33

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	1-10000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 10 days
Payment Terms:	T/T,L/C, Western Union
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Double Row	Material:	GCr15SiMn
Roller Material:	GCr15	Cage Material:	Brass Steel Material

NNU4148MAW33 cylindrical roller bearing 240x400x160 mm for Wheel-end planetaries in stock

Two-row cylindrical roller bearing NNU4148MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.

The cylindrical roller bearings NNU4148MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage

The NNU4148MAW33 cylindrical roller bearing description as follows:

Name		Double/tow row cylindrical roller bearing NNU4148MAW33
Bearing type		NNU4148MAW33
Dimension		240x320x80 mm
ID(inner diameter)/Bore		240 mm
OD(outer diameter)		320 mm
Width/Height/thickness		80 mm
Load Rating	Static	3680 KN
	Dynamic	2290 KN
Speed Ratings	Oil	870 RPM
	Grease	800 RPM
Weight		85 KGS
Delivery time		In stock, If ex-stock, the manufacture time about 15-20 days
package		Standard export wooden case
Quality standard		I S O 2 4 6/ GB/T 283
Material		GCr15 GCr15SiMn
HS Code		8482500090

JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NNU4148MAW33 Bearing and relative products, we have huge stocks for NNU4148MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NNU4148MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!

Full-Complement (NCF)
The full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial
displacements.
TWO-ROW BEARINGS

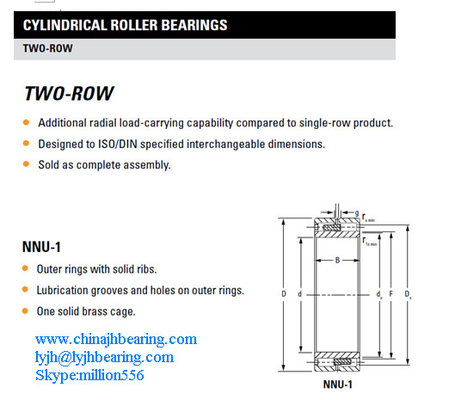

Two-row, or double-row, cylindrical bearings offer added radial capacity over tradition one-row types. These bearing types are interchangeable so the dimensions and diameter under the rollers (NNU style) and diameter over the rollers (NN style) are held to an ISO/DIN standard. The standard cage design is a drilled pocket, finger-style retainer
FOUR-ROW BEARINGS
Four-row cylindrical bearings have an extremely high radial load capacity, but no thrust capacity. This bearing type is mostly used in roll neck and work roll applications in the metal rolling industry. Straight and tapered bore designs are available.

In a cylindrical roller bearing, the rollers and racewaysare in linear contact. Consequently this type of bearing can support a larger radial load than a point-contact ball bearing. Also, its structure is suitable for high-speed operation.
A cylindrical roller bearing used for the main spindle of a machine tool can have either a double- or singlerow configuration, and certain variants have a tapered bore so the radial internal clearance can be adjusted.

Double-row cylindrical roller bearings
Double-row cylindrical roller bearings are available in two types, NN and NNU, and two series, 30 and 49.The rollers in the NN type bearing are guided by the ribs of the inner ring. The rollers in the NNU typebearing are guided by the ribs of the outer ring.
Bearings are available with either a tapered bore type (which allows adjustment of radial internal clearance of bearing) or a standard cylindrical bore. The bearings come in two types, standard type and high-speed HS type. Standard cage is machined brass.

Radial cylindrical ROLLER BEARING Types and cages
Radial cylindrical roller bearings can offer higher radial load capacity than other bearing designs.
The Company offers a wide range of full complement, one -, two -, and four-row designs
to meet various application requirements.

cylindrical roller bearings effectively reduce friction and
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
