Wheel-end planetaries machine use NNU4956MAW33 cylindrical roller bearing 280x380x100 mm

Large Image : Wheel-end planetaries machine use NNU4956MAW33 cylindrical roller bearing 280x380x100 mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	Quality certificate
Model Number:	NNU4956MAW33

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	1-10000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 10 days
Payment Terms:	T/T,L/C, Western Union
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Double Row	Material:	GCr15SiMn
Rolling:	Roller	Heat Treat Ment:	58-62 HRC

Wheel-end planetaries machine use NNU4956MAW33 cylindrical roller bearing 280x380x100 mm

Two-row cylindrical roller bearing NNU4956MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.

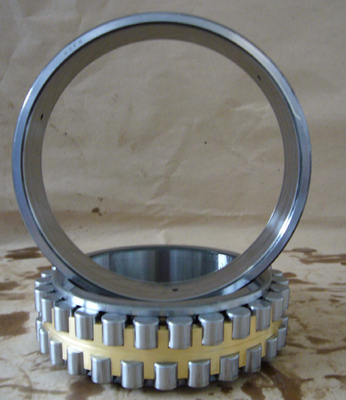

The cylindrical roller bearings NNU4956MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage

The NNU4956MAW33 cylindrical roller bearing description as follows: Wheel-end planetaries machine use NNU4956MAW33 cylindrical roller bearing 280x380x100 mm

Name		Double/tow row cylindrical roller bearing NNU4956MAW33
Bearing type		NNU4956MAW33
Dimension		280x380x100 mm
ID(inner diameter)/Bore		280 mm
OD(outer diameter)		380 mm
Width/Height/thickness		100 mm
Load Rating	Static	1834 KN
	Dynamic	880 KN
Speed Ratings	Oil	1000 RPM
	Grease	880 RPM
Weight		32.5 KGS
Delivery time		In stock, If ex-stock, the manufacture time about 15-20 days
package		Standard export wooden case
Quality standard		I S O 2 4 6/ GB/T 283
Material		GCr15 GCr15SiMn
HS Code		8482500090

JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NNU4956MAW33 Bearing and relative products, we have huge stocks for NNU4956MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NNU4956MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!

Radial cylindrical ROLLER BEARING Types and cages

Radial cylindrical roller bearings can offer higher radial load capacity than other bearing designs.

The Company offers a wide range of full complement, one -, two -, and four-row designs

to meet various application requirements.

Wheel-end planetaries machine use NNU4956MAW33 cylindrical roller bearing 280x380x100 mm

cylindrical roller bearings effectively reduce friction and help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
