NNU4968MAW33 cylindrical roller bearing 340x460x118 mm Gear drives machine use
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P4 P5 P6 P0 | Seals Type: | No Seal |
|---|---|---|---|
| Number Of Row: | Double Row | Material: | GCr15SiMn |
| Rolling: | Roller | Clearance: | C1 C2 C0 |
NNU4968MAW33 cylindrical roller bearing 340x460x118 mm Gear drives machine use
Two-row cylindrical roller bearing NNU4968MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.

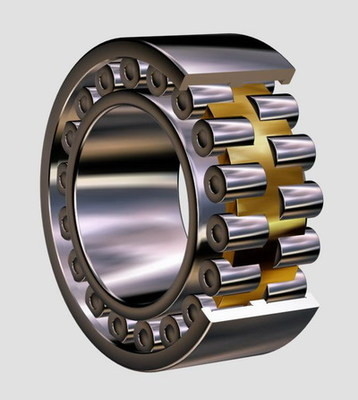

The cylindrical roller bearings NNU4968MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage
The NNU4968MAW33 cylindrical roller bearing description as follows:
|
Name |
Double/tow row cylindrical roller bearing NNU4968MAW33 |
|
|
Bearing type |
NNU4968MAW33 |
|
|
Dimension |
340x460x118 mm |
|
|
ID(inner diameter)/Bore |
340 mm |
|
|
OD(outer diameter) |
460 mm |
|
|
Width/Height/thickness |
118 mm |
|
|
Load Rating |
Static |
2660 KN |
|
Dynamic |
1250 KN |
|
|
Speed Ratings |
Oil |
760 RPM |
|
Grease |
670 RPM |
|
|
Weight |
56 KGS |
|
|
Delivery time |
In stock, If ex-stock, the manufacture time about 15-20 days |
|
|
package |
Standard export wooden case |
|
|
Quality standard |
I S O 2 4 6/ GB/T 283 |
|
|
Material |
GCr15 GCr15SiMn |
|
|
HS Code |
8482500090 |
|
JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NNU4968MAW33 Bearing and relative products, we have huge stocks for NNU4968MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NNU4968MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
Full-Complement (NCF)
The full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial
displacements.
TWO-ROW BEARINGS
Two-row, or double-row, cylindrical bearings offer added radial capacity over tradition one-row types. These bearing types are interchangeable so the dimensions and diameter under the rollers (NNU style) and diameter over the rollers (NN style) are held to an ISO/DIN standard. The standard cage design is a drilled pocket, finger-style retainer
FOUR-ROW BEARINGS
Four-row cylindrical bearings have an extremely high radial load capacity, but no thrust capacity. This bearing type is mostly used in roll neck and work roll applications in the metal rolling industry. Straight and tapered bore designs are available.
The full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial
displacements.
TWO-ROW BEARINGS
Two-row, or double-row, cylindrical bearings offer added radial capacity over tradition one-row types. These bearing types are interchangeable so the dimensions and diameter under the rollers (NNU style) and diameter over the rollers (NN style) are held to an ISO/DIN standard. The standard cage design is a drilled pocket, finger-style retainer
FOUR-ROW BEARINGS
Four-row cylindrical bearings have an extremely high radial load capacity, but no thrust capacity. This bearing type is mostly used in roll neck and work roll applications in the metal rolling industry. Straight and tapered bore designs are available.
cylindrical roller bearings effectively reduce friction and
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
