Aggregate processing machine use NNU4168MAW33 cylindrical roller bearing 340x580x243 mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P4 P5 P6 P0 | Seals Type: | No Seal |
|---|---|---|---|
| Number Of Row: | Double Row | Material: | GCr15SiMn |
| Clearance: | C1 C2 C0 | Roller Brand: | LYC |
Aggregate processing machine use NNU4168MAW33 cylindrical roller bearing 340x580x243 mm

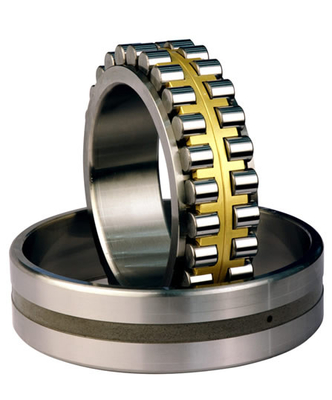

Two-row cylindrical roller bearing NNU4168MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.
The cylindrical roller bearings NNU4168MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage
The NNU4168MAW33 cylindrical roller bearing description as follows:
|
Name |
Double/tow row cylindrical roller bearing NNU4168MAW33 |
|
|
Bearing type |
NNU4168MAW33 |
|
|
Dimension |
340x580x243 mm |
|
|
ID(inner diameter)/Bore |
340 mm |
|
|
OD(outer diameter) |
580 mm |
|
|
Width/Height/thickness |
243 mm |
|
|
Load Rating |
Static |
7580 KN |
|
Dynamic |
4660 KN |
|
|
Speed Ratings |
Oil |
530 RPM |
|
Grease |
490 RPM |
|
|
Weight |
260 KGS |
|
|
Delivery time |
In stock, If ex-stock, the manufacture time about 15-20 days |
|
|
package |
Standard export wooden case |
|
|
Quality standard |
I S O 2 4 6/ GB/T 283 |
|
|
Material |
GCr15 GCr15SiMn Chrome steel |
|
|
HS Code |
8482500090 |
|
| Cage Material | Solid brass cage | |
| service | OEM Service | |
| Payment terms | L/C At sight or T/T | |
| Contact | lyjh@lyjhbearing.com sales@lyjhbearing.com | |
| MSN | lyjhbearing@hotmail.com | |
| Skype | million556 | |
JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NNU4168MAW33 Bearing and relative products, we have huge stocks for NNU4168MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NNU4168MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
Who we are?
We JINHANG Precision bearing are a professional
Precision bearing manufacturer in the world, established in 2005, specializing in slewing bearings, slewing drives,rotary table bearing,crossed roller bearing,cylindrical roller bearing,tapered roller bearing,spherical roller bearing,thrust roller bearing thrust ball bearing,tandem bearing,pinion and other special machine parts, with design, production, sales, marketing and service all over the world. For the high precision bearing,our precision grade can reach to P5 P4 P2 class.
Our team advantage:
We have 70 employees, with 10 experienced engineers and professional technicists. The most of Engineer from LYC and ZWZ brand factory, they had owned produce and design and after sales experienced to design the bearing.We can also design the drawing according to the bearing work condition to meet the customer requirement.
cylindrical roller bearings effectively reduce friction and help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
