NNU4976MAW33 two row cylindrical roller bearing 380x520x140 mm Crop shears machine use
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P4 P5 P6 P0 | Seals Type: | No Seal |
|---|---|---|---|
| Number Of Row: | Double Row | Material: | GCr15SiMn |
| Clearance: | C1 C2 C0 | Cage Material: | Brass Steel Material |

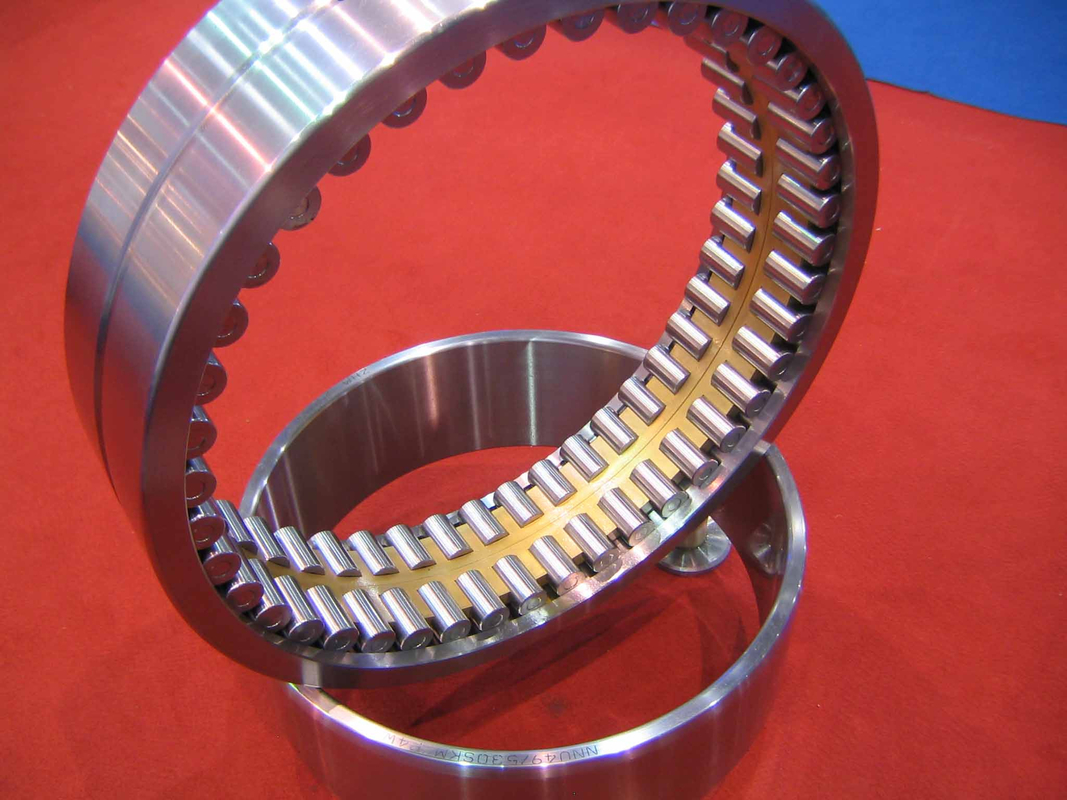

NNU4976MAW33 two row cylindrical roller bearing 380x520x140 mm Crop shears machine use
Two-row cylindrical roller bearing NNU4976MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.
The cylindrical roller bearings NNU4976MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage,used in cement grind mill.
The NNU4976MAW33 cylindrical roller bearing description as follows:
|
Name |
Double/tow row cylindrical roller bearing NNU4976MAW33 |
|
|
Bearing type |
NNU4976MAW33 |
|
|
Dimension |
380x520x140 mm |
|
|
ID(inner diameter)/Bore |
380 mm |
|
|
OD(outer diameter) |
520 mm |
|
|
Width/Height/thickness |
140 mm |
|
|
Load Rating |
Static |
3720 KN |
|
Dynamic |
1660 KN |
|
|
Speed Ratings |
Oil |
630 RPM |
|
Grease |
560 RPM |
|
|
Weight |
87.5 KGS |
|
|
Delivery time |
In stock, If ex-stock, the manufacture time about 15-20 days |
|
|
package |
Standard export wooden case |
|
|
Quality standard |
I S O 2 4 6/ GB/T 283 |
|
|
Material |
GCr15 GCr15SiMn Chrome steel |
|
|
HS Code |
8482500090 |
|
| Cage Material | Solid brass cage | |
| service | OEM Service | |
| Payment terms | L/C At sight or T/T | |
| Contact | lyjh@lyjhbearing.com sales@lyjhbearing.com | |
| wechat/whatsapp | 86 18037970383 | |
| Skype | million556 | |
JinHang Precision Bearing mainly export precision cylindrical roller bearing NNU4976MAW33 Bearing and relative products, we have huge stocks for NNU4976MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NNU4976MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
Radial cylindrical ROLLER BEARING Types and cages
Radial cylindrical roller bearings can offer higher radial load capacity than other bearing designs.
The Company offers a wide range of full complement, one -, two -, and four-row designs
to meet various application requirements.
Radial cylindrical roller bearings can offer higher radial load capacity than other bearing designs.
The Company offers a wide range of full complement, one -, two -, and four-row designs
to meet various application requirements.
cylindrical roller bearings effectively reduce friction and
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
