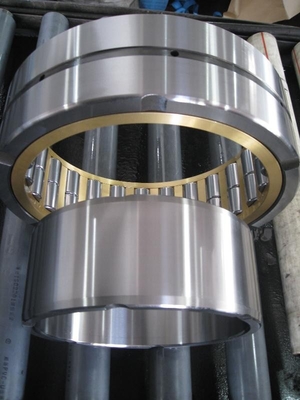

Cylindrical roller bearings NNU4988MAW33 440x600x160 mm solid brass cage oil lubirication

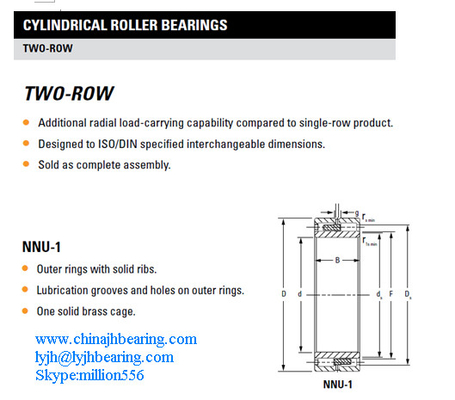

• Structure: The cylindrical roller bearings NNU4988MAW33  has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage



• Brand Name: JHB or OEM Required

Dimension:440x600x160 mm

• Bore Size: 440 mm metric size

• Outside Diameter:600 mm metric size

• Height:160 mm metric size

   Weight:136 kgs

• Cage:Sold brass cage

• Lubrication:grease or oil

• Bearing mark: Brand+ NNU4988MAW33 Or your requirement

• Place of Origin: LuoYang, China (Mainland)

• Delivery Time: 20-30 days

• Sample:available

• Material: GCr15, GCr15SiMn

• The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case

• Payment: T/T or L/C

NNU4980MAW3 bearing Specifications

1. High precision: P5,P6,P0

2. Low noise

3. Long serive life

4. short delivery time

5. OEM service provided

6. Processing with supplied drawings



Name	Double/tow row cylindrical roller bearing NNU4988MAW33
Bearing type	NNU4988MAW33
Dimension	440x600x160 mm
ID(inner diameter)/Bore	440 mm
OD(outer diameter)	600 mm
Width/Height/thickness	160 mm





Cylindrical roller bearings consist of an inner and outer ring, a roller-retaining cage, and a complement of controlledcontour cylindrical rollers. Depending on the type of bearing, either the inner or the outer ring has two roller-guiding ribs. The other ring is separable from the assembly and has one rib or none. The ring with two ribs axially locates the position of the roller assembly. The ground diameters of these ribs may be used to support the roller cage. One of the ribs may be used to carry light thrust loads when an opposing rib is provided.The decision as to which ring should be double ribbed is normally
determined by considering assembly and mounting procedures in the application.
Type NU has double-ribbed outer and straight inner rings. Type Nhas double-ribbed inner and straight outer rings. The use of either type at one position on a shaft is ideal for accommodating shaft expansion or contraction. The relative axial displacement of one ring to the other occurs with minimum friction while the bearing is rotating. These bearings may be used in two positions for shaft support if other means of axial location are provided. Type NJ has double-ribbed outer and single-ribbed inner rings. Type NF has double-ribbed inner and single-ribbed outer rings. Both types can support heavy radial loads, as well as light unidirectional thrust loads. The thrust load is transmitted between the diagonally opposed rib faces in a sliding action.



We JINHANG Precision bearing are a professional
Precision bearing manufacturer in the world, established in 2005, specializing in slewing bearings, slewing drives,rotary table bearing,crossed roller bearing,cylindrical roller bearing,tapered roller bearing,spherical roller bearing,thrust roller bearing thrust ball bearing,tandem bearing,pinion and other special machine parts, with design, production, sales, marketing and service all over the world. For the high precision bearing,our precision grade can reach to P5 P4 P2 class.

Our team advantage:
We have 70 employees, with 10 experienced engineers and professional technicists. The most of Engineer from LYC and ZWZ brand factory, they had owned produce and design and after sales experienced to design the bearing.We can also design the drawing according to the bearing work condition to meet the customer requirement.
