To order Crossed roller bearing RB11015,110X145X15MM,in stock

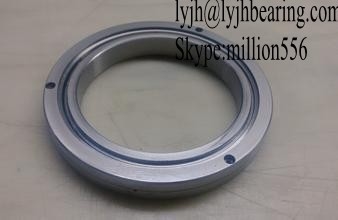

Large Image : To order Crossed roller bearing RB11015,110X145X15MM,in stock

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	RB11015 Quality certificate
Model Number:	RB11015

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock
Payment Terms:	T/T,L/C
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Crossed roller bearing RB11015 Belongs to Model RB Separable outer ring type for inner ring rotation.Being the basic model of the cross roller ring,its outer ring is separable while the inner ring is integrated with the main body.This model is used in locations where the rotation accuracy of the inner ring is required,Major applications include the index table swiveling unit or machine tools.

Name: RB11015 Bearing or RB11015 roller bearing or RB11015 Crossed roller bearing, The bearing RB11015 shaft diameter:110 mm,

Dimension(dxDxB):110X145X15MM

Inner diameter (d):110mm

Outer diameter(D):145mm

Width(B):15mm

Weight:0.75 kgs

Radial Basic load rating: C:23.7 KN,Co:41.5 KN

Precision grade: P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

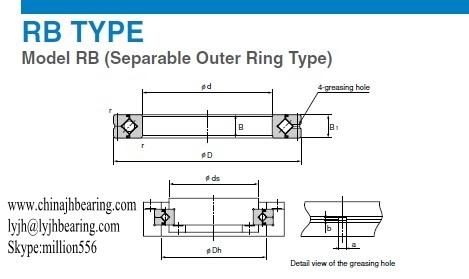

The bearing RB11015 profile as following:
