Crossed roller bearing RA7008UUCC0 70x86x8mm sealed structure and application,in stock

Large Image : Crossed roller bearing RA7008UUCC0 70x86x8mm sealed structure and application,in stock

Product Details:

Place of Origin:	CHINA
Brand Name:	JHB or OEM
Certification:	ISO9001
Model Number:	RA7008UUCC0

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD50-100
Packaging Details:	carton and standard wooden case
Delivery Time:	1 days
Payment Terms:	T/T,paypal
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Material:	GCr15	Grease:	No.2 Li Base Grease
Delivery Time:	In Stock	Seal:	Double Seal
Package:	Carton

Crossed roller bearing RA7008UUCC0 70x86x8mm sealed structure and application

RA7008UUCC0 Bearing with cylindrical roller are arranged crosswise,with each roller perpendicular to the adjacent roller,in a 90 degree groove,separated from each other by a space retainer.

Bearing type

Boundary dimension

(mm)

Load rating

weight

Equivalent bearing type

Package

RA7008UUCC0

KGS

5.98

9.8

0.1

THK:RA7008

IKO:CRBS708

Vacuumize bag

Crossed roller bearing RA7008UUCC0 70x86x8mm sealed structure and application,in stock

UU:with seal attached on both sides
U:with seal attached on one side
CCO:negative clearance
CO:positive clearance
C1:positive clearance(greater than CO)
Grade: No Symbol normal grade 0
USP:USP grade rotation accuracy
P5: P5 grade rotation accuracy
The delivery time: in stock

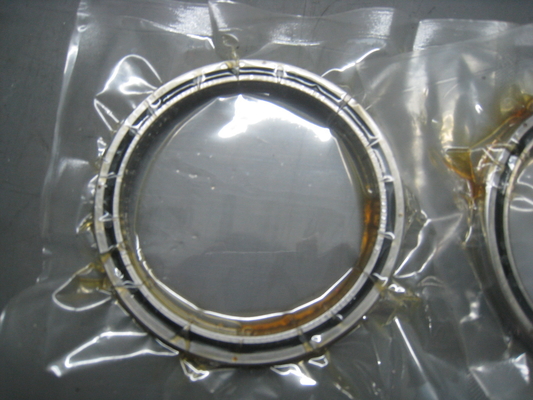

The package:vacuum packing and carton

We/JinHang Precision bearing can offer crossed roller bearing two structure of sealed type and open type:
RA7008CC0 Bearing open type: without seal structure makes the friction smaller,and it is suitable for low torque application.The crossed roller bearing RA7008CC0 open type also required with oil holes for lubrication.
RA7008UUCC0 Bearing sealed type: The double seal will prevent any foreign substance from entering the track as well as preventing lubrication leakege.The sealed type has oil holes for lubrication.
Crossed roller beairng RA7008UUCC0 application:
Industry robot joints
Industry robot swiveling unit
Swiveling table of machining centers
Rotary units of manipulators
Precision rotary tables,
Medical equipment
Measuring instruments
IC Manufacturing machines

Besides of RA7008,We can offer

RA5008UUCC0,RA6008UUCC0,RA8008UUCC0,RA9008UUCC0,RA10008UUCC0,RA11008UUCC0,RA11008UUCC0,RA12008UUCC0,RA13008UUCC0,RA14008UUCC0,RA15008UUCC0,RA16013UUCC0,RA170013UUCC0,RA18013UUCC0,RA19013UUCC0,RA20013UUCC0 and customized crossed roller bearing type.
